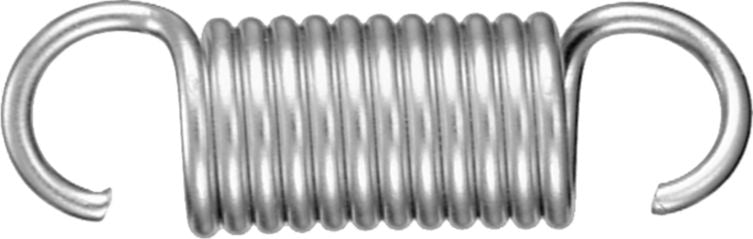

Extension Spring, Steel, 12 Wire Gauge, 50lbs Maximum Work Load, 3/4" OD, 2-7/16" Length
(Pack of 5)

SKU:89712 Item#: 89712

Lawson Products

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Check Availability

Quantity

Catalog page#: 16-40, 16-44

Frequently Bought Together

Extension Spring Kit 60Pcs

Extension Spring 1/2 x 5"

Extension Spring 5/8 x 6-1/2"

Automotive Refinishing Tape 1" x 60 Yards

Valve Action® Permanent Paint Marker Orange

Valve Action® Permanent Paint Marker Blue

Premium Nitrile Gloves, Black, 6 Mil, Medium, 100/Box

Qwik Stik® Electrolyte Powder Mix Asst

Universal High-Visibility Sorbent Pad

SAE Flat Washer Thru-Hardened Steel 1/4"

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Locknut with Nylon Insert Grade 8 5/16-18

Valve Action® Permanent Paint Marker Yellow

WypAll X60 Teri Wiper 9.1 x 16.8"

Plastic Rotary Drum Pump 20 to 55gal

Product Description

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Technical Specifications

Item#:	89712
Type	Extension Spring
O.D.	3/4 "
Length	2-7/16
Wire Diameter	0.105 "
Wire Gauge	12
Initial Tension	16 lb
Rate	53.9 lb./in.
Maximum Work Load	50 lb
Material	Steel
UNSPSC #:	31161907
TAA Compliant:	Yes
Weight:	0.35 lb
