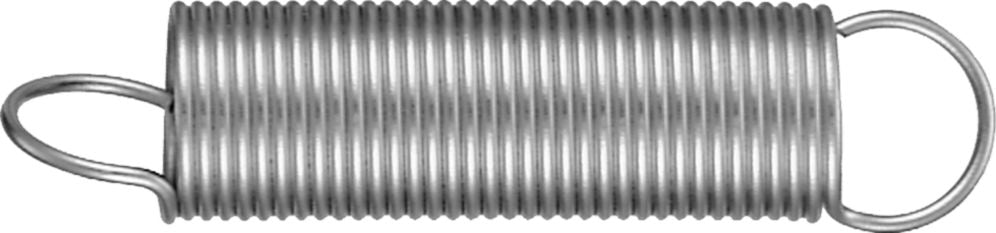

Extension Spring, Steel, 16 Wire Gauge, 12lbs Maximum Work Load, 3/4" OD, 3-1/2" Length
(Pack of 2)

SKU:89644 Item#: 89644

Lawson Products

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Check Availability

Quantity

Catalog page#: 16-40, 16-41

Frequently Bought Together

Extension Spring 1/4 x 1-7/8"

Extension Spring 11/32 x 1-7/8"

Extension Spring 5/32 x 1-7/8"

Universal Sorbent Roll

Sustayn™ Recycled Univeral Sorbent Pad

150 ft Trailing Marking Red and Silver Conspicuity Tape

Qwik Stik® Electrolyte Powder Mix 0 Cal Lemon-Lime

WypAll X80 ShopPro Towel 12.5 x 13.4"

SafetyPro 8 Mil Nitrile Glove Orange 2X-Large

Superbutt Connector 16 to 14 AWG Blue

Superbutt Connector 22 to 18 AWG Red

Utility Knife, Folding , 4" Closed

Premium Polypropylene Packaging Tape 48mm x 50 mm

Paint Marker White

Rubber Marking Crayon White

Product Description

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Technical Specifications

Item#:	89644
Type	Extension Spring
O.D.	3/4 "
Length	3-1/2
Wire Diameter	0.063 "
Wire Gauge	16
Initial Tension	3 lb
Rate	1.88 lb./in.
Maximum Work Load	12 lb
Material	Steel
UNSPSC #:	31161907
TAA Compliant:	Yes
Weight:	0.14 lb
