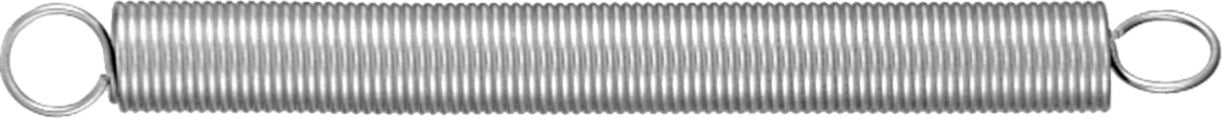

Extension Spring, Steel, 20 Wire Gauge, 6lbs Maximum Work Load, 3/8" OD, 4" Length
(Pack of
5)
SKU:89676 Item#: 89676
• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure
Couldn't load pickup availability
Frequently Bought Together
Extension Spring 13/32 x 4-1/2"
Item#: 89702
Couldn't load pickup availability
Extension Spring 5/16 x 5"
Item#: 89709
Couldn't load pickup availability
Humpback All-in-One Pressure Washer System 3,000 PSI
Item#: 1694077
Couldn't load pickup availability
Hi-Tack Double-Faced Mounting Tape 1" x 30'
Item#: P49542
Couldn't load pickup availability
Baseball Style Bump Cap with HDPE Protective Liner and Adjustable Back
Item#: 1655143
Couldn't load pickup availability
Ear Plug Dispenser
Item#: A1X94
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Master Series Penlight Flashlight
Item#: 1635602
Couldn't load pickup availability
Floor Squeegee Aluminum 36"
Item#: 98944
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Item#: CW4894A
Couldn't load pickup availability
Product Description
• Used in applications where a movable part is to be retained or controlled under pressure• Used in applications where a movable part is to be retained or controlled under pressure
Technical Specifications
| Item#: | 89676 |
|---|---|
| Type | Extension Spring |
| O.D. | 3/8 " |
| Length | 4 |
| Wire Diameter | 0.035 " |
| Wire Gauge | 20 |
| Initial Tension | 1/2 lb |
| Rate | 0.63 lb./in. |
| Maximum Work Load | 6 lb |
| Material | Steel |
| UNSPSC #: | 31161907 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
