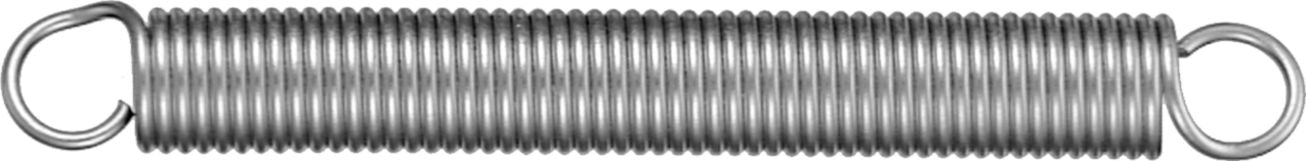

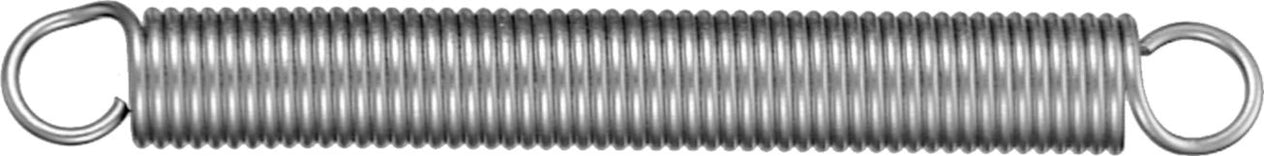

Extension Spring, Steel, 15 Wire Gauge, 25lbs Maximum Work Load, 9/16" OD, 5" Length
(Pack of 2)

SKU:89659 Item#: 89659

Lawson Products

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Check Availability

Quantity

Catalog page#: 16-40, 16-41

Frequently Bought Together

Extension Spring 7/8 x 3-1/2"

Extension Spring 13/16 x 4"

Extension Spring 7/8 x 6"

Automotive Refinishing Tape 2" x 60 Yards

WypAll X80 ShopPro Towel 12.5 x 13.4"

Auto-Darkening Panoramic View Welding Helmet

Item#: EG70828000

Split Key Ring 1"

Valve Action® Permanent Paint Marker White

WypAll X80 ShopPro Towel 12.5 x 16.8"

Nylon Cable Tie 4" Black

180-degree Wide Beam Head Light with Side Light

USS Flat Washer Thru-Hardened Steel 5/16"

Valve Action® Permanent Paint Marker Black

WypAll X60 Teri Wiper 12.5 x 13.4"

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Product Description

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Technical Specifications

Item#:	89659
Type	Extension Spring
O.D.	9/16 "
Length	5
Wire Diameter	0.072 "
Wire Gauge	15
Initial Tension	10 lb
Rate	5.59 lb./in.
Maximum Work Load	25 lb
Material	Steel
UNSPSC #:	31161907
TAA Compliant:	Yes
Weight:	0.23 lb
