Home Eye Bolts Eye Bolt, Lifting, M27 x 3.0
Eye Bolts

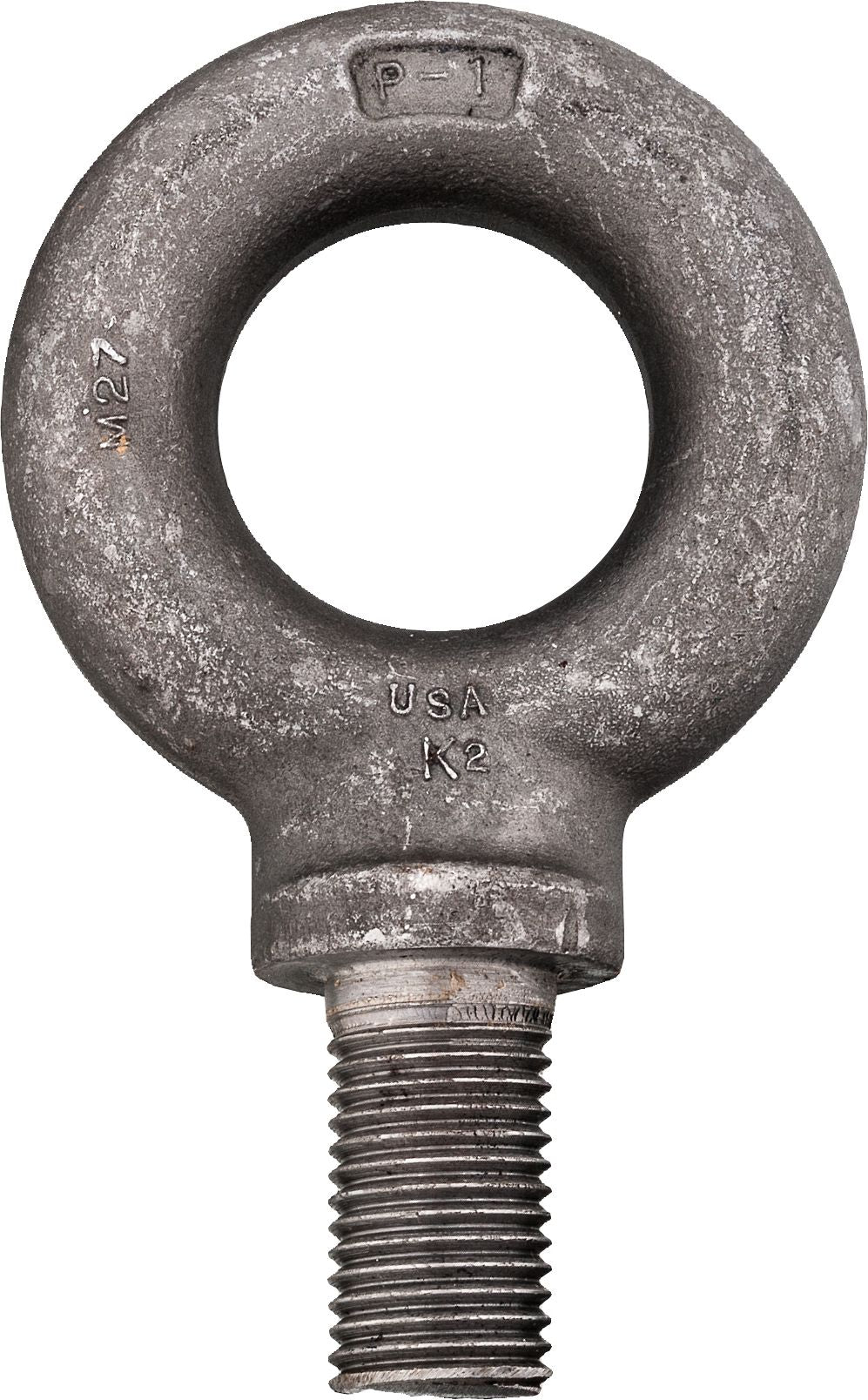

Eye Bolt, Lifting, M27 x 3.0
(Pack of 1)

Lawson Products

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Read More
Check Availability

Frequently Bought Together


Shoulder Eyebolt, Machinery, Self-Colored, M7 x 1.0 x 28.5

Item#: 1442077

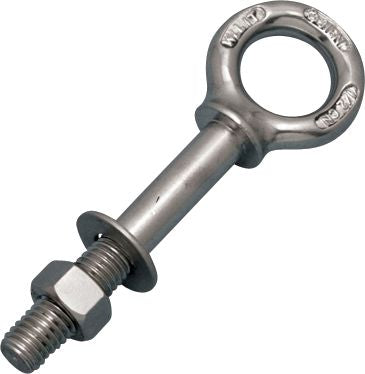

Shoulder Eye Bolt with Nut, Stainless Steel, 1/2"-13, 2,150 lb WLL

Item#: 1427892

Turned Eyebolt, Zinc-Plated, 1/2" x 4"

Item#: 1593236

S-Hook Zinc Plated Heavy Steel 2-1/2" Length

Item#: 1599

Screw Pin Anchor Shackle, 1-1/4", 28,000 lb WLL

Item#: 14496

Bolt, Nut and Cotter Anchor Shackle, 7/8", 17,000 lb WLL

Item#: 1429921

Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439135

Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439061

LoadHugger™ Web Tiedown, with Ratchet, Yellow, 20' Length

Item#: 26833

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Product Description

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Technical Specifications

Item#: 59245
Type Machinery Eye Bolt
Style Shoulder Pattern
Material Forged Steel
Thread Size M27 x 3.0
Eye I.D. 51 mm
Eye O.D. 103 mm
Overall Length 169.3 mm
Thread Length 48 mm
Working Load Limit 5,200 kg
UNSPSC #: 31162600
TAA Compliant: Yes
Weight: 3.33 lb
