Home Eye Bolts Eye Bolt, Lifting, M30 x 3.5
Eye Bolts

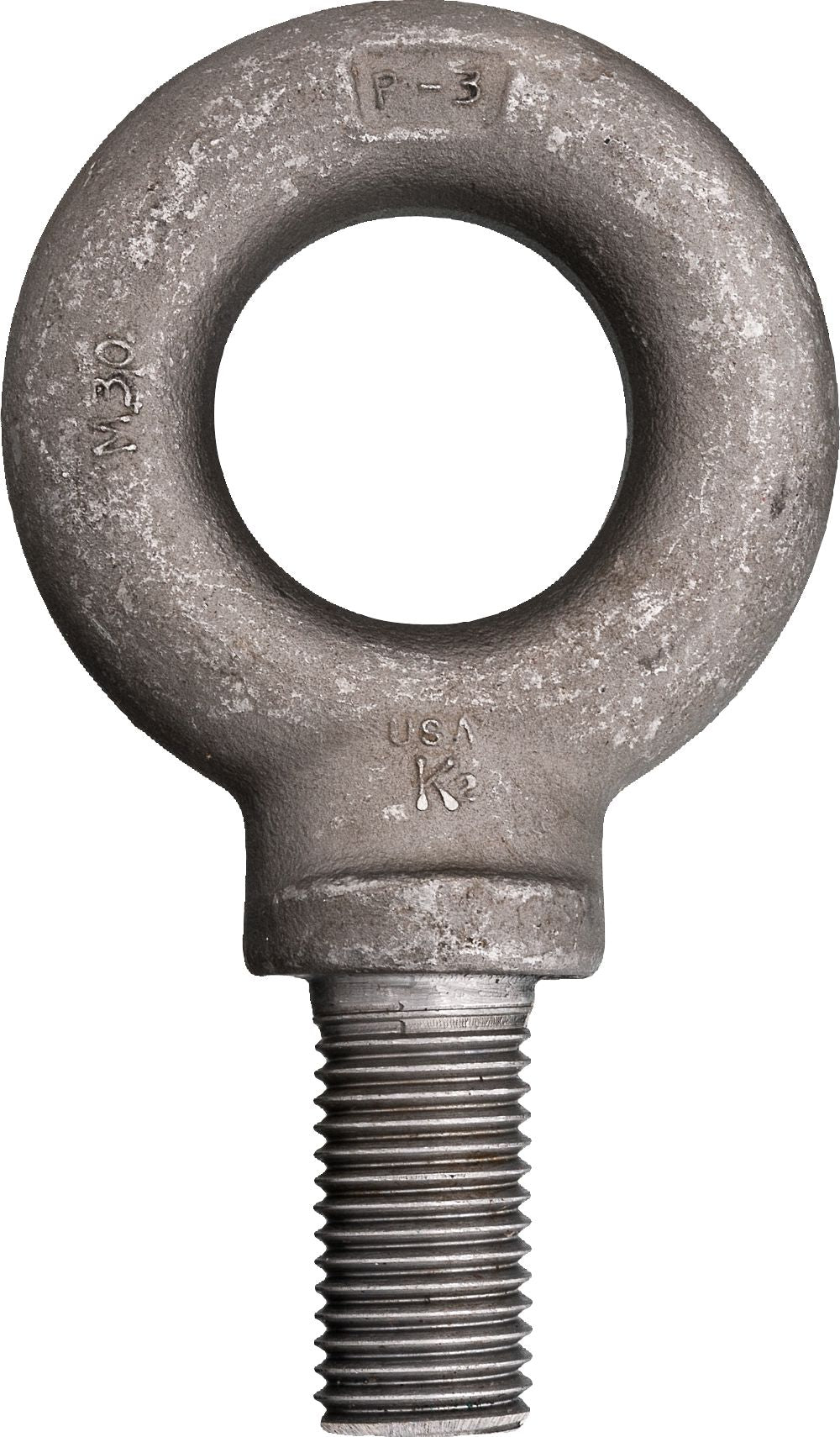

Eye Bolt, Lifting, M30 x 3.5
(Pack of 1)

Item#: 59246

Lawson Products

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Shoulder Eyebolt, Machinery, Self-Colored, M20 x 2.5 x 57

Item#: 1442494

Shoulder Eyebolt, Machinery, Self-Colored, M24 x 3.0 x 63.5

Item#: 1442412

Welded Eye Bolt with Nut, Stainless Steel, 6mm, 400 lb WLL

Item#: 1427879

Eye Bolts, Machinery, 1/2 x 1-1/2"

Item#: 85519

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879

Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL

Item#: 1424880

Wire Rope Sleeve, 1/8", Aluminum

Item#: 1440382

Quick Link 3/8" Chain Size 2220 Lb Safe Load

Item#: 85525

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Butt Connector 22 to 18 AWG Red

Item#: 92822

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

Product Description

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Technical Specifications

Item#: 59246
Type Machinery Eye Bolt
Style Shoulder Pattern
Material Forged Steel
Thread Size M30 x 3.5
Eye I.D. 55 mm
Eye O.D. 112.7 mm
Overall Length 192.8 mm
Thread Length 60 mm
Working Load Limit 6,400 kg
UNSPSC #: 31162600
TAA Compliant: Yes
Weight: 4.46 lb
