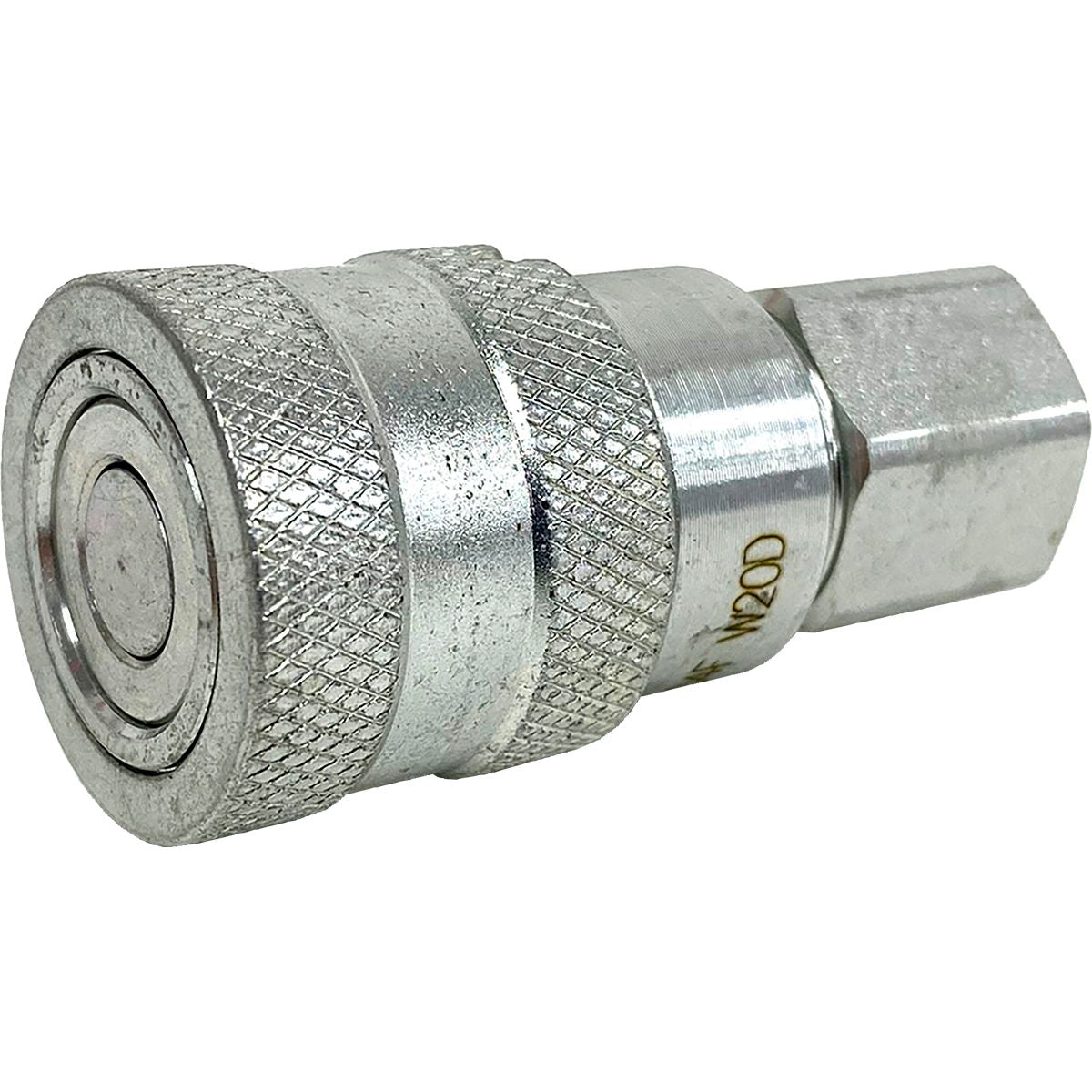

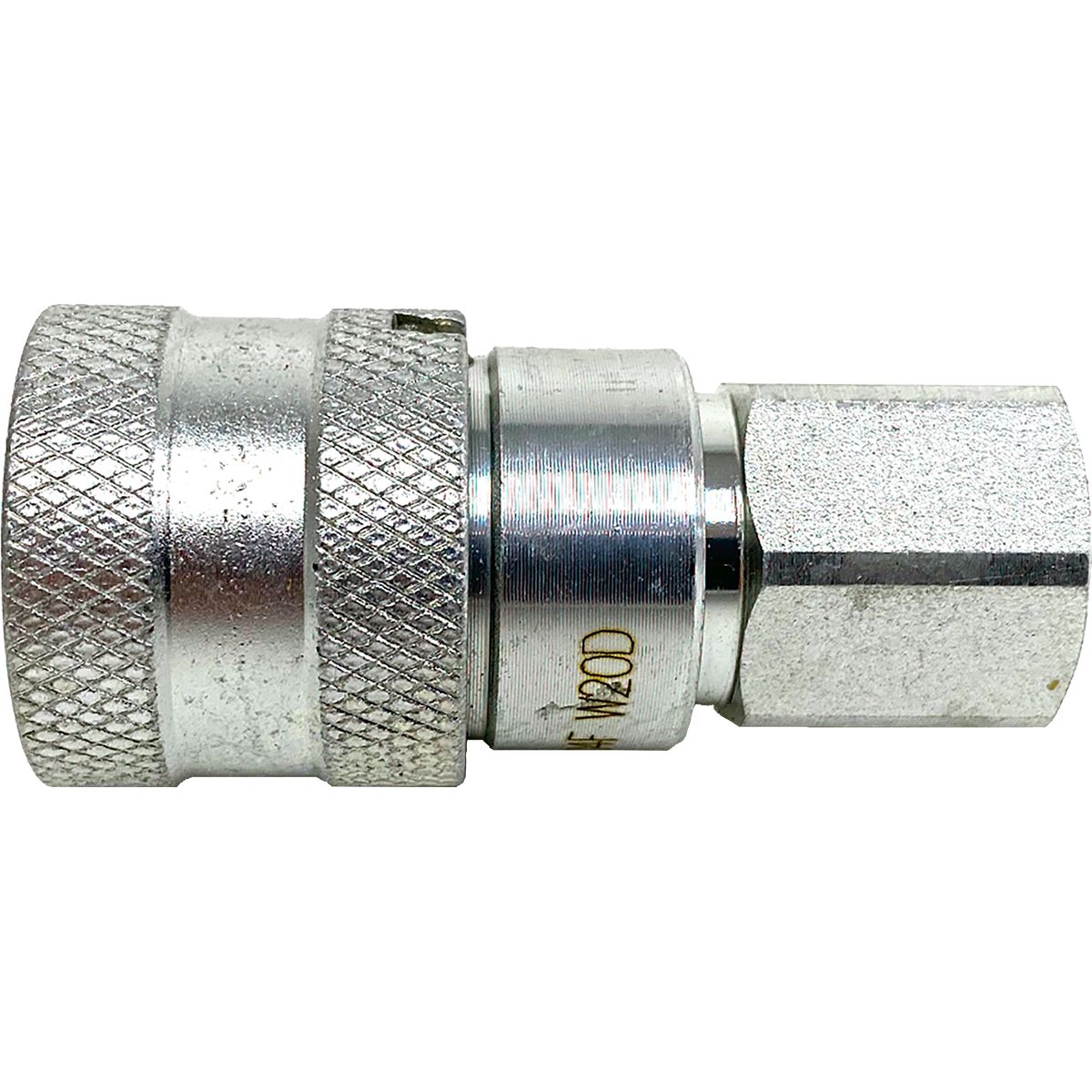

Flatface Hydraulic Quikconnect Fitting, 1/4 ORBF X 1/4 Female Flatface Body, ISO 16028 Compliant, Connects Against 250PSI Pressure
(Pack of
1)
SKU:DY44700134 Item#: DY44700134
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.
• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Couldn't load pickup availability
Catalog page#: LE-35
Frequently Bought Together
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.468 x 0.078"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hydraulic Dust Cap for Coupler PVC/Rubber 1/2"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 1-11-1/2
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Technical Specifications
| Item#: | DY44700134 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Flat Face Female Coupler |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 1/4 " |
| Thread Size | 7/16-20 |
| Thread Style | Female O-Ring Boss |
| Burst Pressure | 20000 PSI |
| Seal Material | Nitrile O-Ring with PTFE Bonded Seals |
| Material | Zinc Plated Steel |
| Locking Mechanism | Multiple Metal Balls |
| Flow | 3 gal/min |
| Length | 1.89 " |
| Temperature Range | -4°F to 257°F (-20°C to 125°C) |
| Working Pressure | 5,000 PSI |
| Hex Size | 20mm (0.79") |
| Maximum Diameter | 1.10 " |
| Coupled Length | 3.78 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
