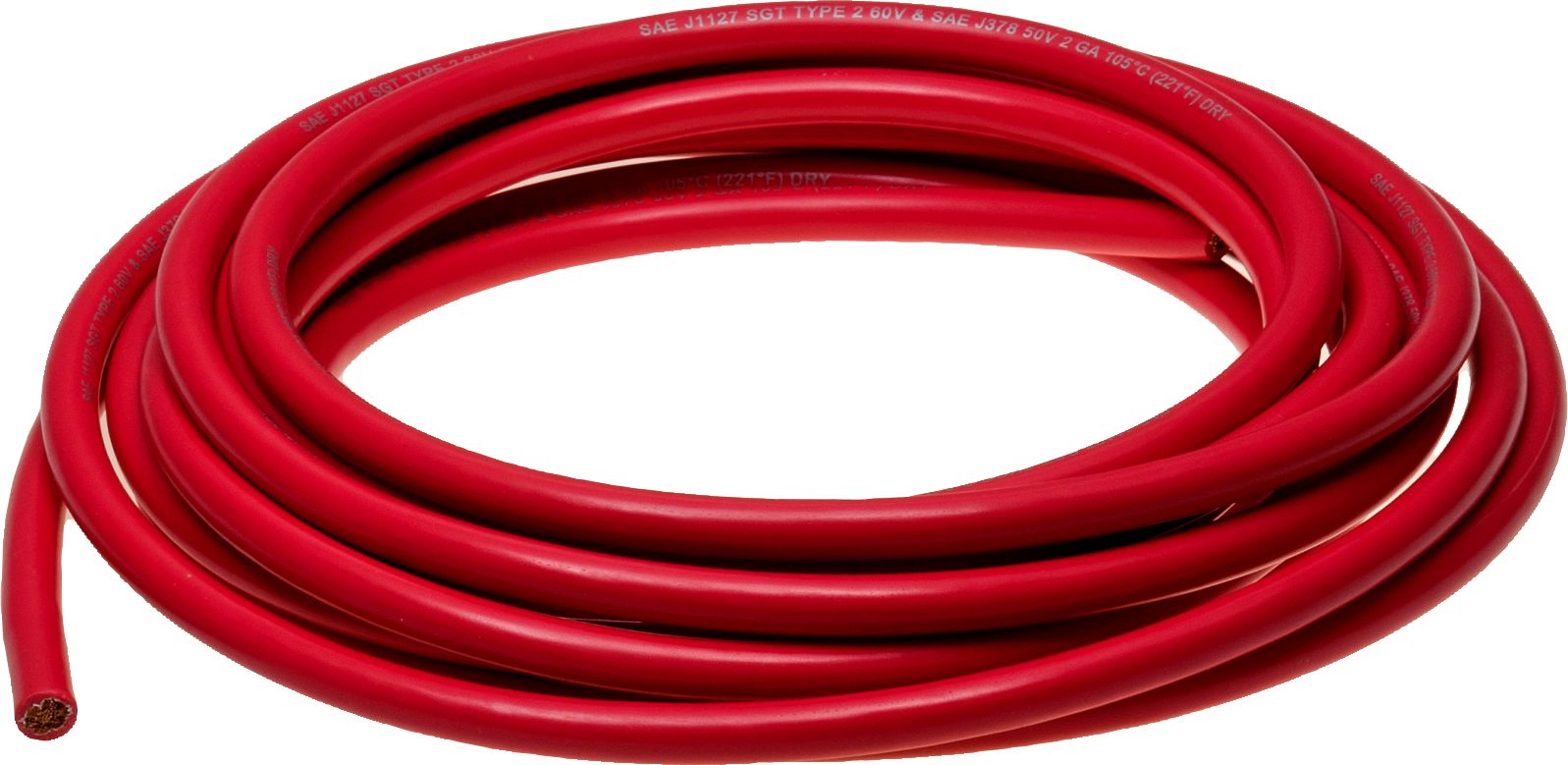

Flexible Battery Cable 2/0 AWG Red 50'
(Pack of
1.0)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Flexible Battery Cable 2/0 AWG Black 50'
Couldn't load pickup availability
Flexible Battery Cable 6 AWG Black 50'
Couldn't load pickup availability
Battery Cable 2 AWG Red Green-Crimp Code
Couldn't load pickup availability
ATO/ATC Fuse 30A Green
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Nylon Cable Tie 6" Black
Couldn't load pickup availability
DT Series Socket Wedgelock 13A 4 Contacts
Couldn't load pickup availability
DT Series Pin Wedgelock 13A 3 Contacts
Couldn't load pickup availability
Flexible Battery Cable 4 AWG Black 25'
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52680 |
|---|---|
| Cable Gauge | 2/0 |
| Total Strands | 1,273 |
| Color | Red |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 50 ft |
| Crimp Color Code | Orange |
| Amperage Capacity at 140°F (60°C) | 225 A |
| Amperage Capacity at 167°F (75°C) | 265 A |
| Amperage Capacity at 194°F (90°C) | 300 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 26.07 lb |
