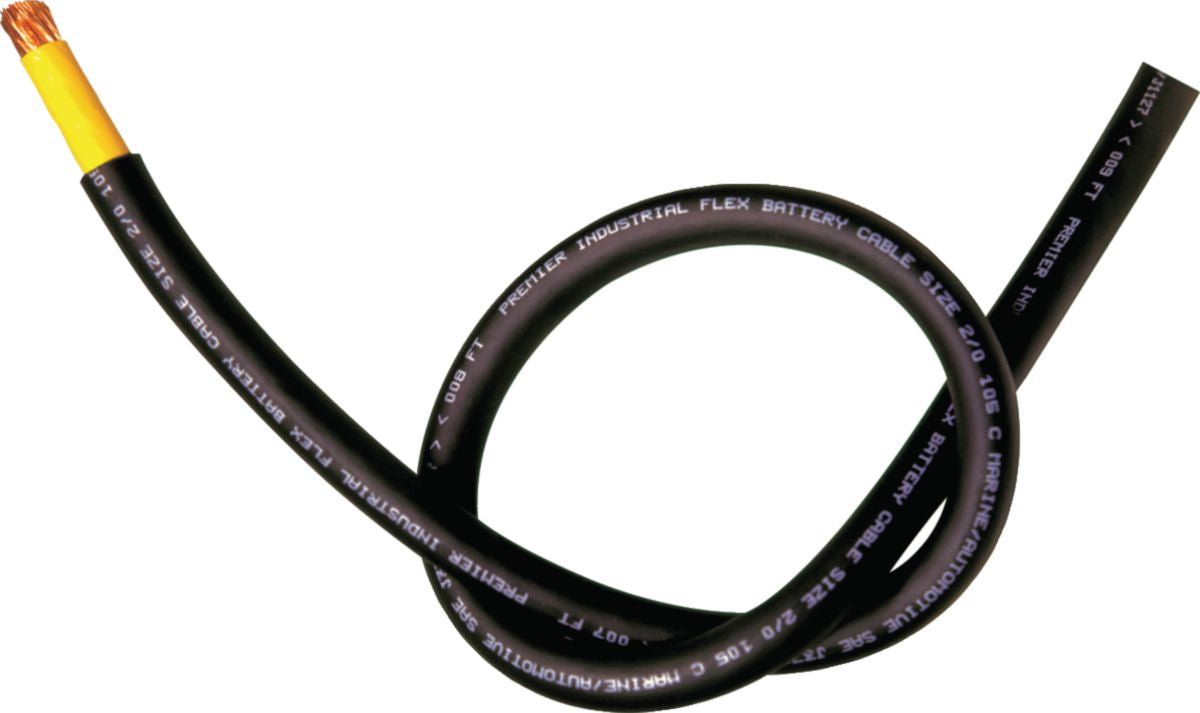

Flexible Battery Cable 2 AWG Red 25'
(Pack of
1.0)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Flexible Battery Cable 8 AWG Black 50'
Couldn't load pickup availability
Flexible Battery Cable 4/0 AWG Red 25'
Couldn't load pickup availability
Battery Cable 6 AWG Black Blue-Crimp Code
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Pin Contact 14 AWG Size 16
Couldn't load pickup availability
Socket Terminal Contact 16-14 AWG
Couldn't load pickup availability
Pin Terminal Contact Male 16-14 AWG
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52487 |
|---|---|
| Cable Gauge | 2 |
| Total Strands | 627 |
| Color | Red |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 25 ft |
| Crimp Color Code | Green |
| Amperage Capacity at 140°F (60°C) | 140 A |
| Amperage Capacity at 167°F (75°C) | 170 A |
| Amperage Capacity at 194°F (90°C) | 190 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 7.52 lb |
