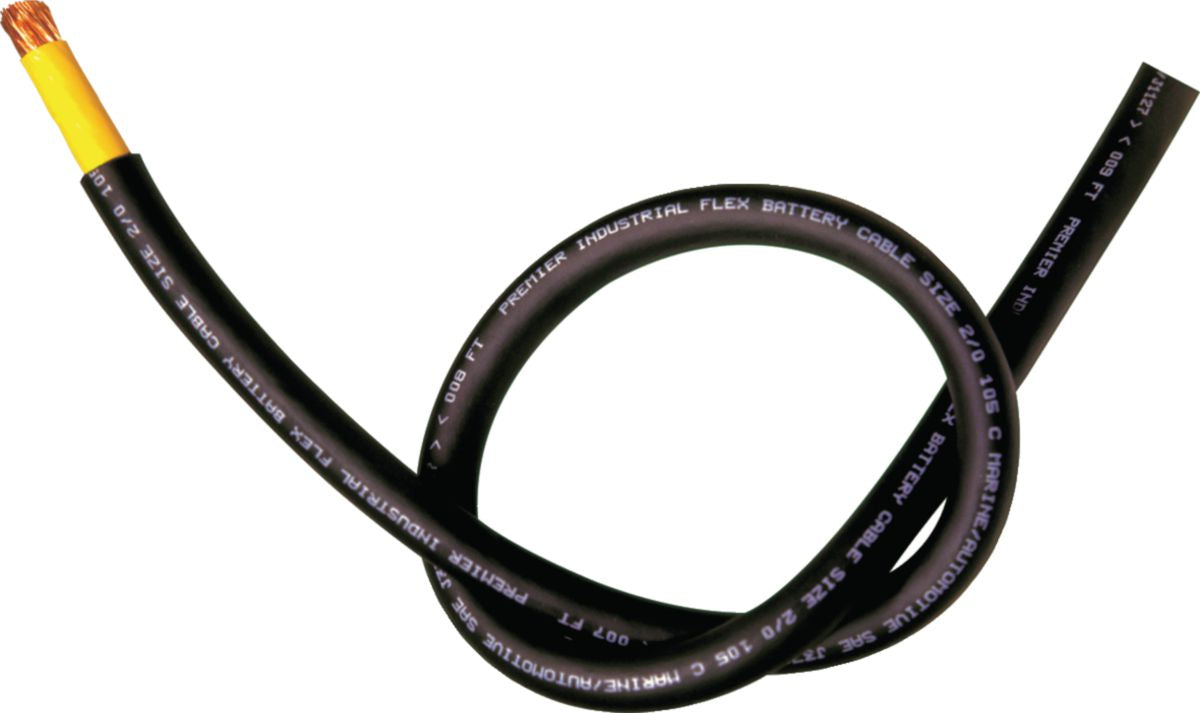

Flexible Battery Cable 4 AWG Black 25'
(Pack of
1.0)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Flexible Battery Cable 1/0 AWG Red 25'
Couldn't load pickup availability
Flexible Battery Cable 2/0 AWG Red 50'
Couldn't load pickup availability
Flexible Battery Cable 1/0 AWG Red 50'
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Seal Gray 16-14 AWG 20A 12V 280 Series/WP
Couldn't load pickup availability
Pin Terminal Contact Male 20-18 AWG
Couldn't load pickup availability
Socket Terminal Contact 20-18 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52478 |
|---|---|
| Cable Gauge | 4 |
| Total Strands | 399 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 25 ft |
| Crimp Color Code | Gray |
| Amperage Capacity at 140°F (60°C) | 105 A |
| Amperage Capacity at 167°F (75°C) | 125 A |
| Amperage Capacity at 194°F (90°C) | 140 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 5.61 lb |
