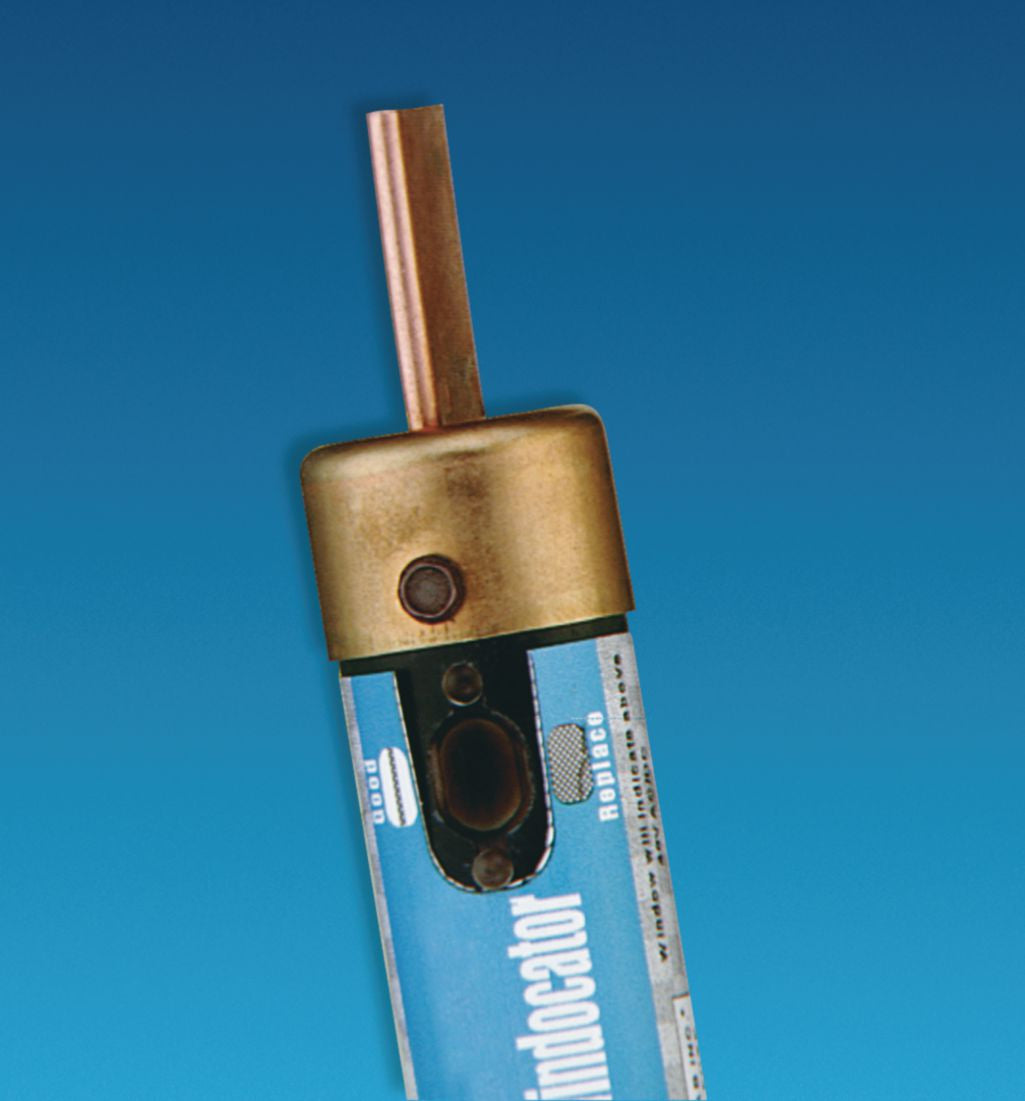

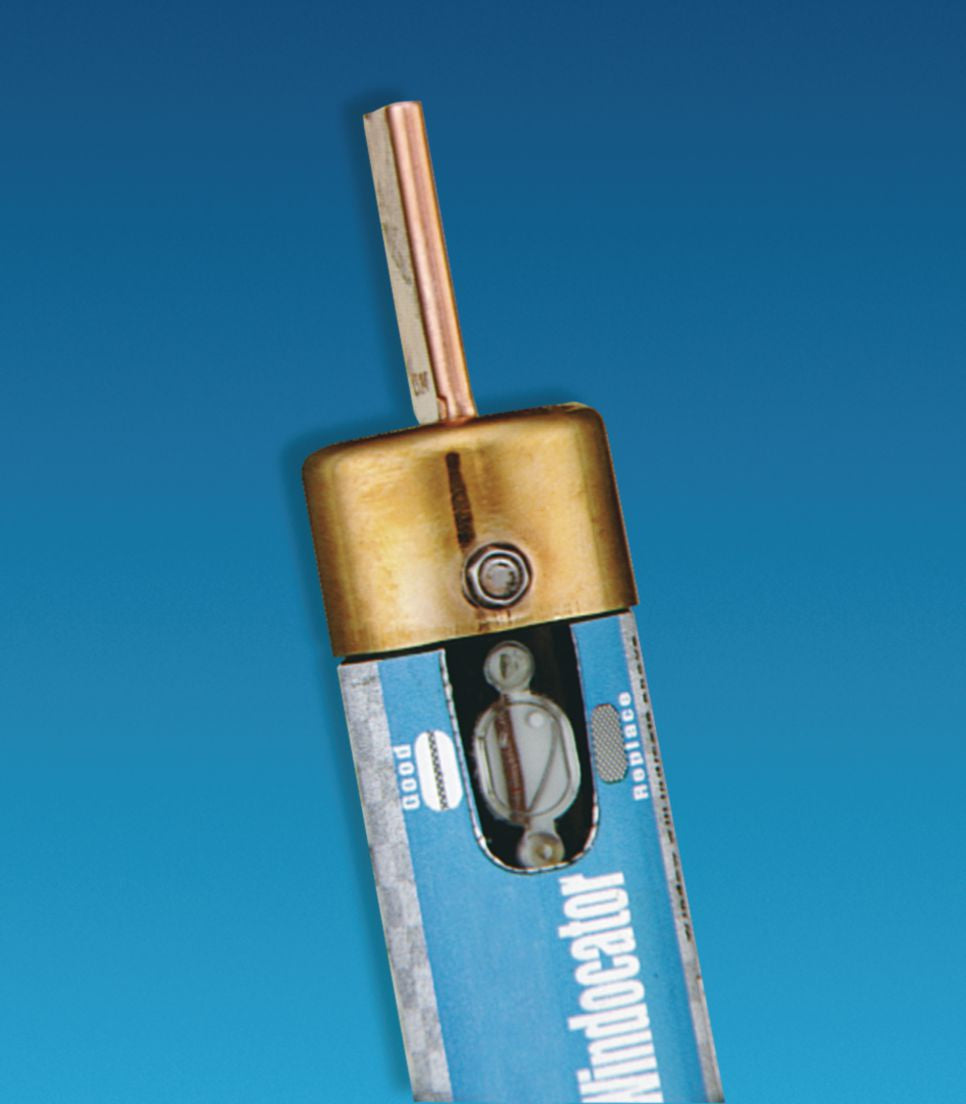

FLNR Series Class RK5 Indicator Fuse, 2 Amps, 250 Volts AC, 125 Volts DC, Slow Blow
(Pack of
5)
SKU:25294 Item#: 25294
• Fuses provide visual blown fuse indication at a glance
• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
FLNR amperages between 8/10 and 30A do not have indicating window due to size restrictions.
Couldn't load pickup availability
Catalog page#: 17-116
Frequently Bought Together
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Low-Profile JCASE High Amp Fuse 50A Red
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
MINI Smart Glow Fuse 10A Red
Couldn't load pickup availability
KLKR Series Class CC Fuse 10A
Couldn't load pickup availability
CCMR Series Class CC Fuse 10A
Couldn't load pickup availability
326 Series Ceramic Body Fuse 25A
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• Fuses provide visual blown fuse indication at a glance• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
FLNR amperages between 8/10 and 30A do not have indicating window due to size restrictions.
Technical Specifications
| Item#: | 25294 |
|---|---|
| Style | FLNR_ID Indicator Class RK5 Fuses |
| Amperage | 2 A |
| Rating | 250V AC, 125V DC Maximum V |
| Approvals | UL, CSA |
| Type | Fuses |
| Replaces | competitors FRN-R and TRN-R non-indicating fuses |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
