For Soft Material, CAD-Plated Finish, 3/8-24
(Pack of
25)
SKU:95979 Item#: 95979
• Tin-plated

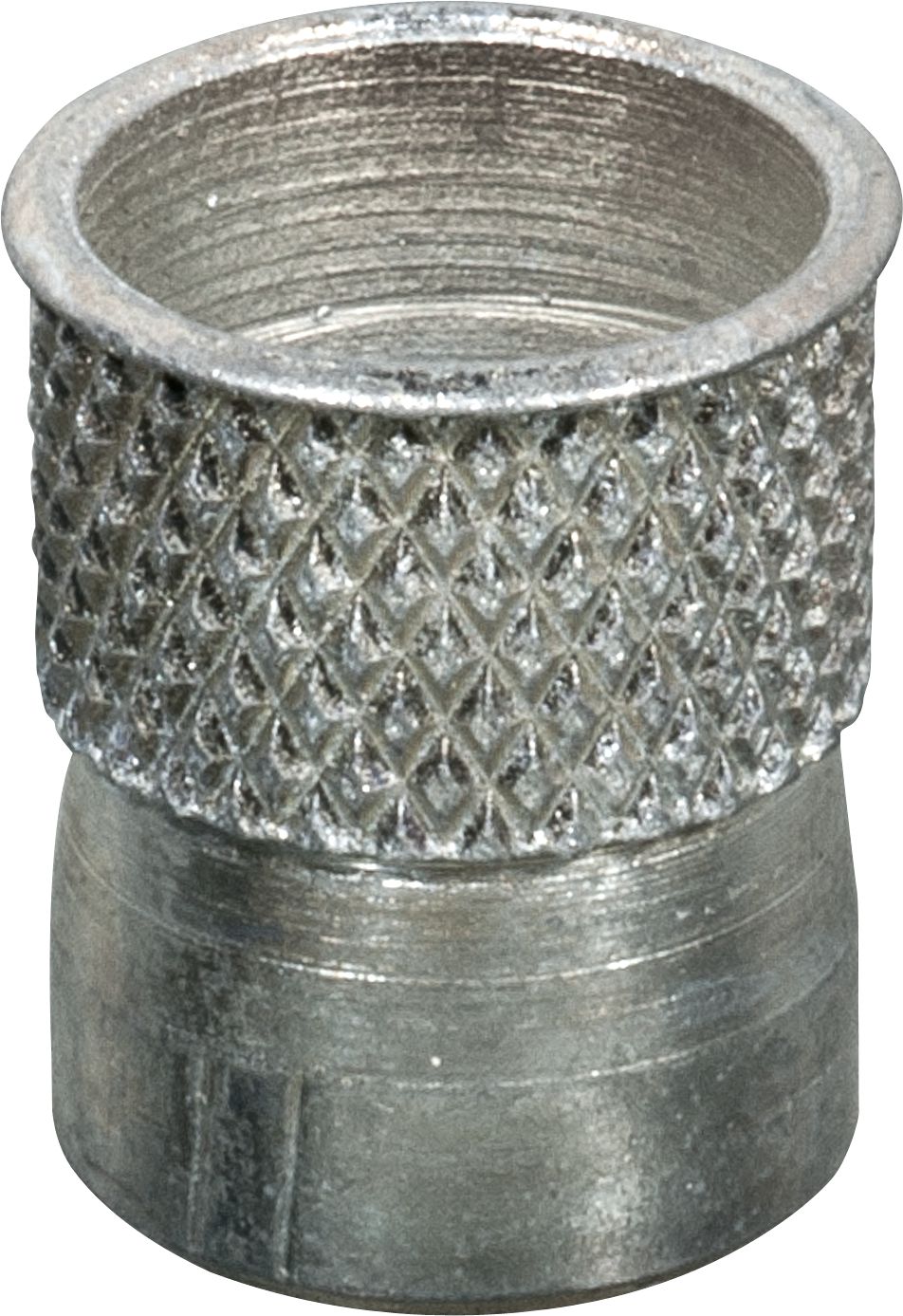

• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Product Description
• Tin-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95979 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 24 |
| Thread | Fine |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.594 " |
| Pilot Drill Size | 19/32 " |
| Pilot Drill Number | 81034 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.615 " |
| Body Diameter | 0.590 " |
| Length | 0.740 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
