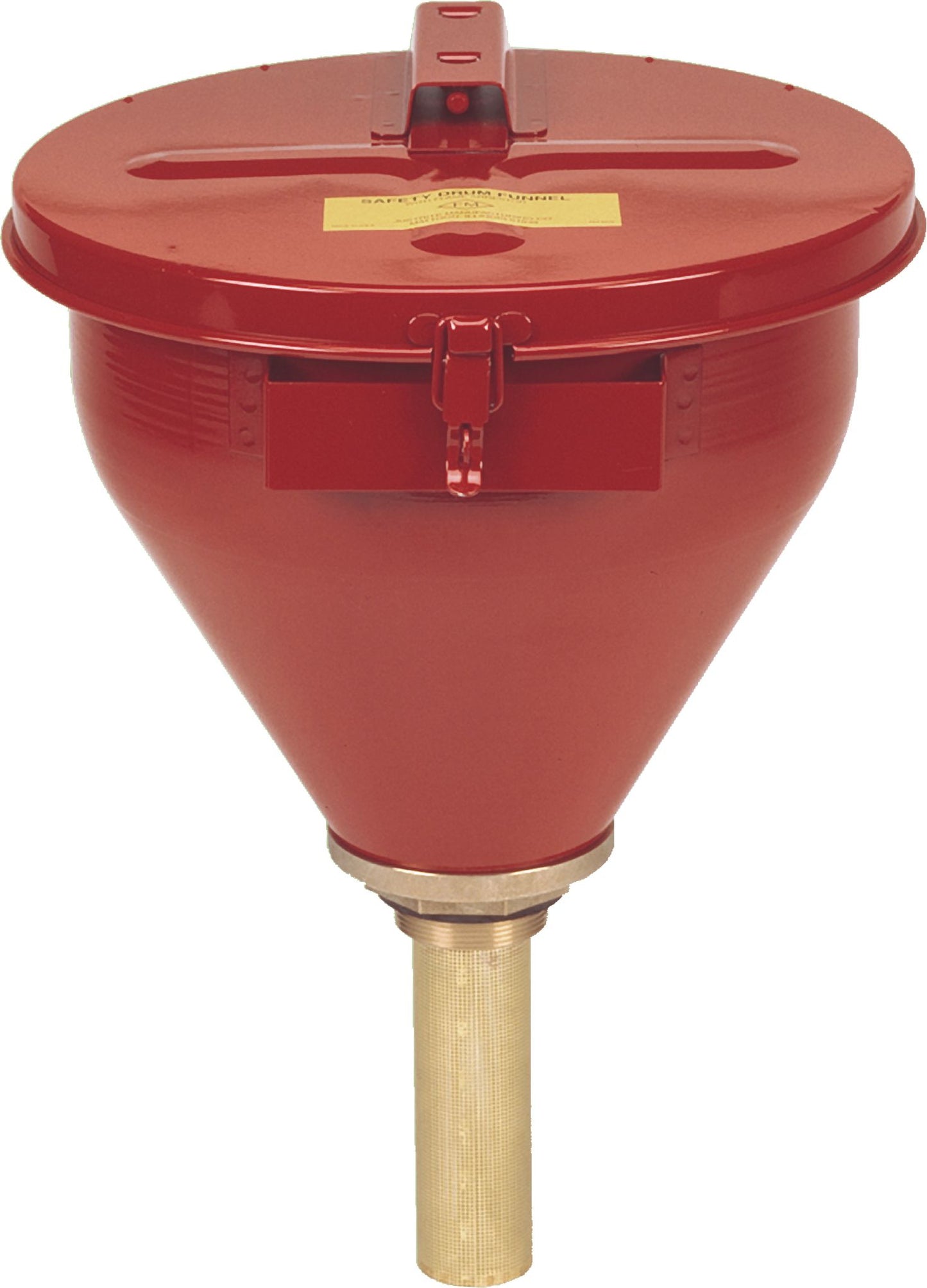

Safety Funnel with 6" Brass Flame Arrestor, Fits 2" Bung Hole, 30/55 Gallon Drums
(Pack of
1)
SKU:1593104 Item#: 1593104
Wide-mouth funnels fit 2" bung on a 30- or 55-gallon drums. Heavy, 18 Ga. galvanized steel with electrostatically-applied epoxy powder-coat paint provides durability and chemical resistance. Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents. Larger funnels accept a lock to prevent unauthorized access. Self-closing covers have a fusible link that melts at 165°F (74°C). The cover then automatically shuts in case of a fire to extinguish the flames.
• Funnel size: 10-3/4" dia. x 10" high
• Mouth dia.: 10-3/4"
• Funnel capacity: 2.6 gal. (10L)
• Self-closing cover
All funnels comply with EPA and OSHA regulations and are FM approved.
Frequently Bought Together
Eagle Drum Funnel
Couldn't load pickup availability
Drum Funnel Cover
Couldn't load pickup availability
Funnel w/ 33" Flame Arrestor
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
General Purpose Duct Tape 48 mm x 55m
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Red
Couldn't load pickup availability
Type II Safety Can
Couldn't load pickup availability
Spray Bottle Attachment for Utili-Guard+ Flammable Cabinets 29023
Couldn't load pickup availability
Steel Shelf for 20 gallon Wall Mount Safety Cabinet 29938
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
SafetyPro 8 Mil Nitrile Glove Orange X-Large
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix 0 Cal Fruit Punch
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Wide-mouth funnels fit 2" bung on a 30- or 55-gallon drums. Heavy, 18 Ga. galvanized steel with electrostatically-applied epoxy powder-coat paint provides durability and chemical resistance. Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents. Larger funnels accept a lock to prevent unauthorized access. Self-closing covers have a fusible link that melts at 165°F (74°C). The cover then automatically shuts in case of a fire to extinguish the flames.• Funnel size: 10-3/4" dia. x 10" high
• Mouth dia.: 10-3/4"
• Funnel capacity: 2.6 gal. (10L)
• Self-closing cover
All funnels comply with EPA and OSHA regulations and are FM approved.
Technical Specifications
| Item#: | 1593104 |
|---|---|
| Type | Funnel |
| Style | Flame Arrestor |
| Height | 10 " |
| Material | 18 Gauge Galvanized Steel |
| Approvals | EPA, OHSA, FM |
| Description | With 6" Flame Arrestor |
| Diameter | 10-3/4 " |
| Capacity | 2.6 gal |
| Spout | Fits 2" NPT Bung |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27112902 |
| TAA Compliant: | No |
| Weight: | 9.8 lb |
