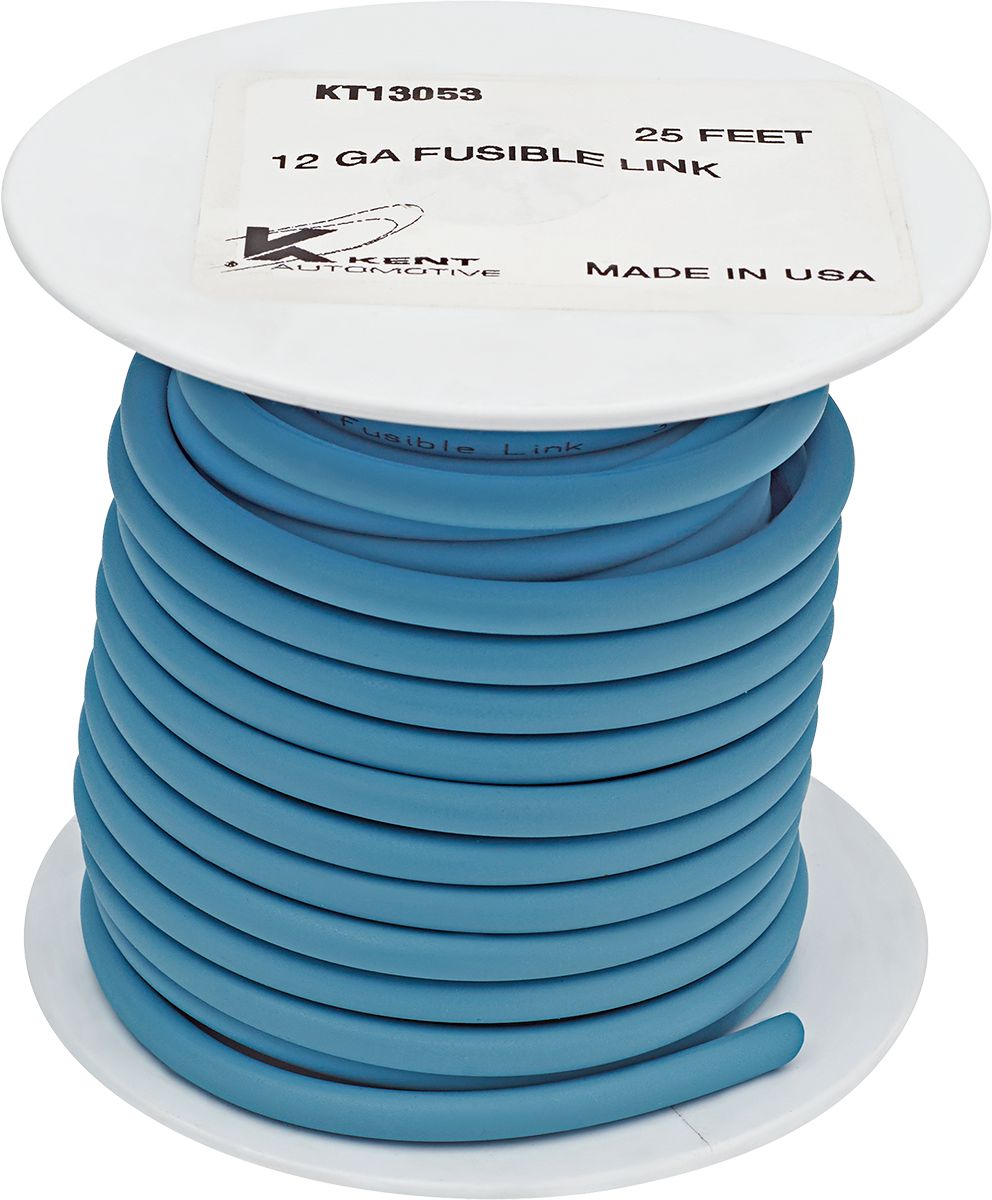

Fusible Link Wire 12 AWG 25'
(Pack of
1.0)
A fusible link is a special short length of low-tension cable installed by an OEM and designed to open a circuit when subjected to extreme current overload to minimize wiring system damage when such an overload accidentally occurs. A short circuit causes the fusible link to act as an element in a slow-blow fuse. It is not intended to be used in place of a fuse, but only where a fuse is not economical. The vehicle manufacturer should be consulted about questions on fusible link length and size. Typically, a fusible link should be four gauges smaller than the circuit wire. For example, if the circuit wire is 12 Ga., use a 16 Ga. fusible link.
• Meets SAE Specification J156
• Insulation is an EAE elastomer, rated at 302°F (150°C) and has characteristics superior to SAE J1128 Type SXL
• Supplied in 25-foot spools
NOTE: Always replace a fusible link with one of the same gauge and length as installed by the manufacturer. This material is suitable only for the replacement of a failed factory-installed link after the cause of failure is corrected. It should not be used to replace a fuse or circuit breaker.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 19-11
Frequently Bought Together
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' White
Couldn't load pickup availability
Fusible Link Wire 16 AWG 25'
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
A fusible link is a special short length of low-tension cable installed by an OEM and designed to open a circuit when subjected to extreme current overload to minimize wiring system damage when such an overload accidentally occurs. A short circuit causes the fusible link to act as an element in a slow-blow fuse. It is not intended to be used in place of a fuse, but only where a fuse is not economical. The vehicle manufacturer should be consulted about questions on fusible link length and size. Typically, a fusible link should be four gauges smaller than the circuit wire. For example, if the circuit wire is 12 Ga., use a 16 Ga. fusible link.• Meets SAE Specification J156
• Insulation is an EAE elastomer, rated at 302°F (150°C) and has characteristics superior to SAE J1128 Type SXL
• Supplied in 25-foot spools
NOTE: Always replace a fusible link with one of the same gauge and length as installed by the manufacturer. This material is suitable only for the replacement of a failed factory-installed link after the cause of failure is corrected. It should not be used to replace a fuse or circuit breaker.
Technical Specifications
| Item#: | 55826 |
|---|---|
| Wire Gauge | 12 AWG |
| Length | 25 ft |
| Package Type | 1 Spool |
| Approvals | Meets SAE Specification J156 |
| Style | Spooled Fusible Link Wire |
| Type | Vehicle Circuit Protection |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 0.9 lb |
