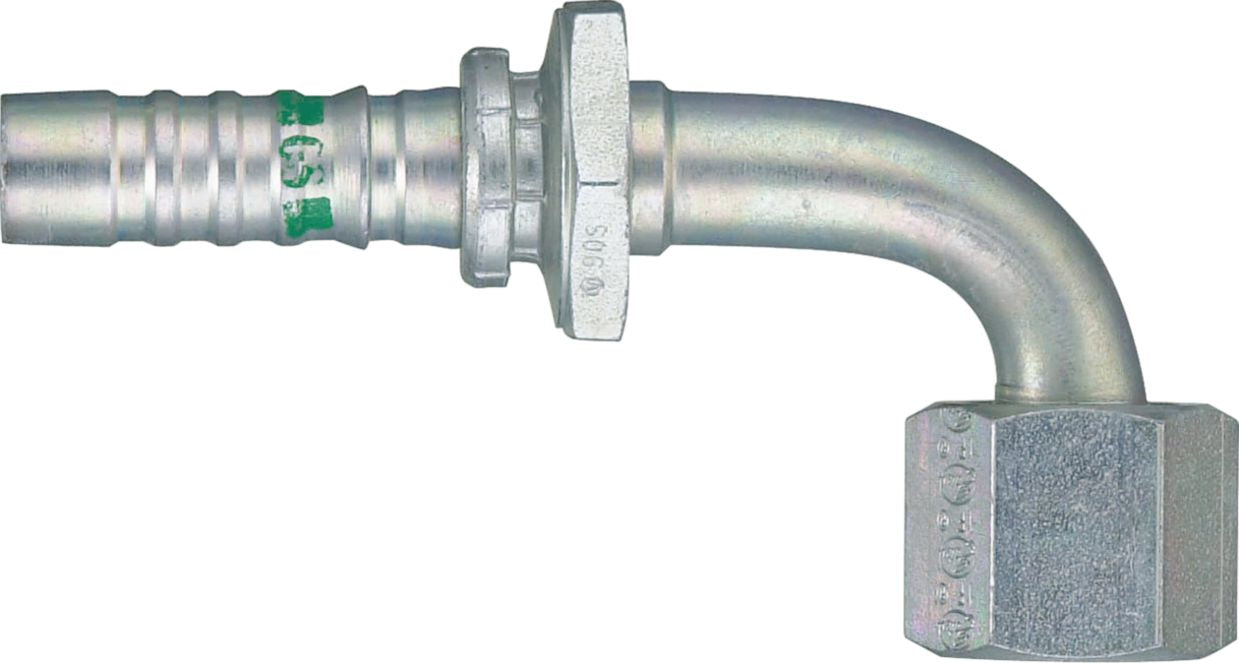

Global Spiral Crimp-On Elbow, Carbon Steel, Short Drop, Female Flat Face O-Ring Seal, 90°, 1/2" (-8) x 13/16-16 (-8)
(Pack of
1)
SKU:23135 Item#: 23135
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Couldn't load pickup availability
Catalog page#: 8-51
Frequently Bought Together
Crimp-On Hose Coupling 3/8" x 3/8-18
Item#: 88311KH
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/4" x 7/16-20
Item#: 16643
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Item#: 16716
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Item#: 51140KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Item#: 86727
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Master Series Penlight Flashlight
Item#: 1635602
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23135 |
|---|---|
| Manufacturer Model #: | 8GS-8FFORX90S |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Drop Length | Short |
| Fitting Dimension B (Working End) | 13/16-16 (-8) |
| Gates Number | 8GS-8FFORX90S |
| Drop Length | Short |
| O.D. Tube Size | 1/2 |
| Size | (-8)X(-8) |
| Hex Size | 15/16 " |
| Description | Female Swivel Flat Face O-Ring 90° Short Drop Tube Elbow |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.34 lb |
