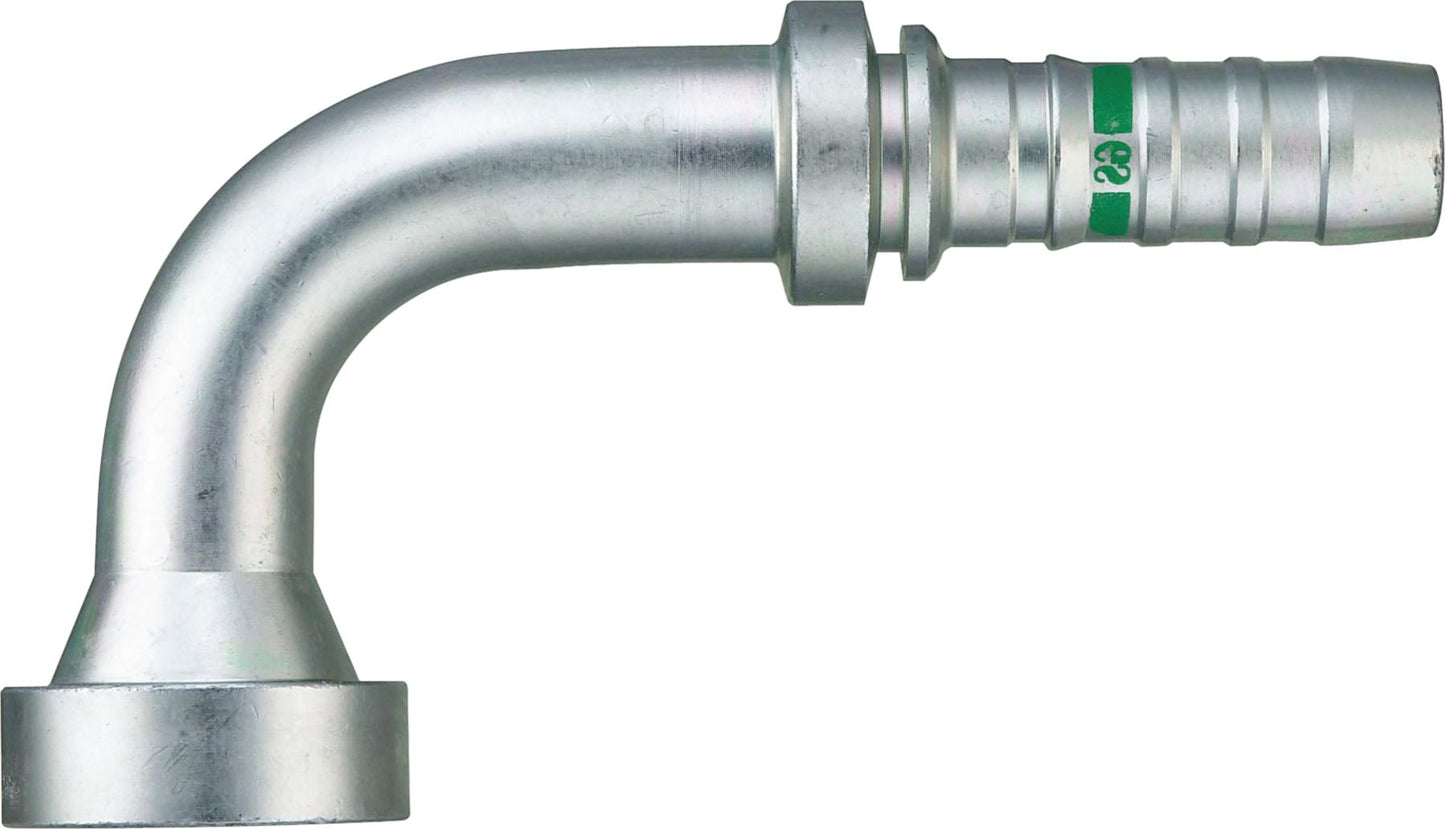

Global Spiral Crimp-On Elbow, Carbon Steel, Split Flange Caterpillar Style, 90°, 1 (-16) x 1" (-16)
(Pack of 1)

Item#: 23189

Gates®

• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"

Read More
Check Availability

Catalog page#: 8-52

Frequently Bought Together


KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 88382KH

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare

Item#: 86150

Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare

Item#: 86154

MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Product Description

• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"

Technical Specifications

Item#: 23189
Manufacturer Model #: 16GS-16FLC90-074
Manufacturer Series Number Global Spiral Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Split Flange
Fitting End Style Split Flange Caterpillar/Thick Flange
Fitting End Type Caterpillar Style
Fitting Angle 90 °
Fitting Dimension B (Working End) 1 (-16)
Flange Diameter 1.88 "
Gates Number 16GS-16FLC90-074
Thread Size 1.88 "
O.D. Tube Size 1
Size (-16)X(-16)
Hex Size 0.375 "
Description Split Flange 90° Tube Elbow Code 62
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 1.41 lb
