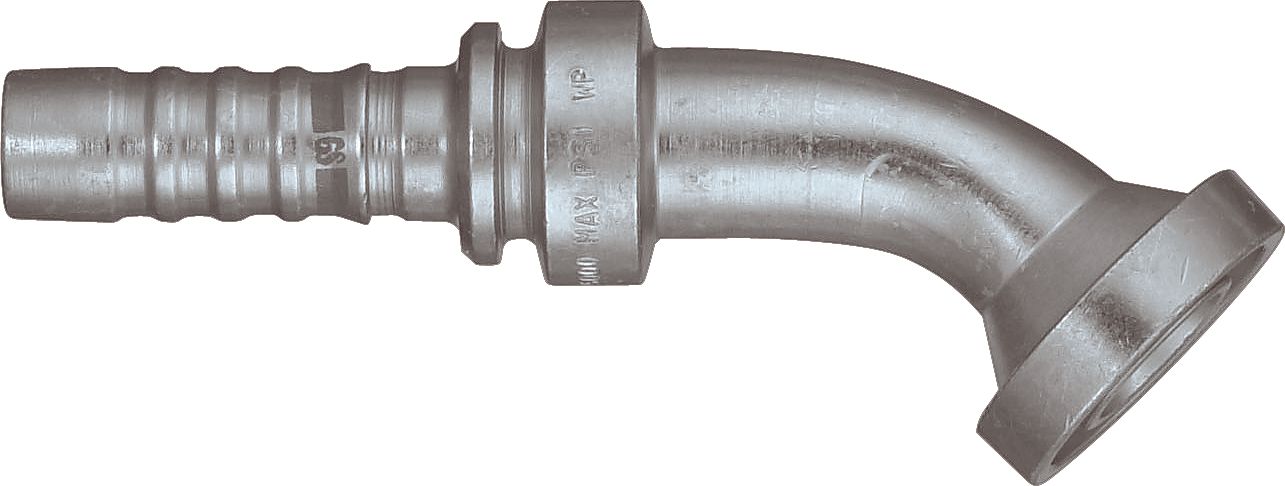

Global Spiral Series Split Flange Split Flange Code 61 45° 3/8 (-6)x 1/2 (-8) Crimp-on End Fitting
(Pack of
1)
SKU:23157 Item#: 23157
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23157 |
|---|---|
| Manufacturer Model #: | 6GS-8FL45M |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 45 Degrees |
| Fitting Drop Length | Medium |
| Fitting Dimension B (Working End) | 1/2 (-8) |
| Flange Diameter | 1.19 " |
| Gates Number | 6GS-8FL45M |
| Size | (-6)X(-8) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
