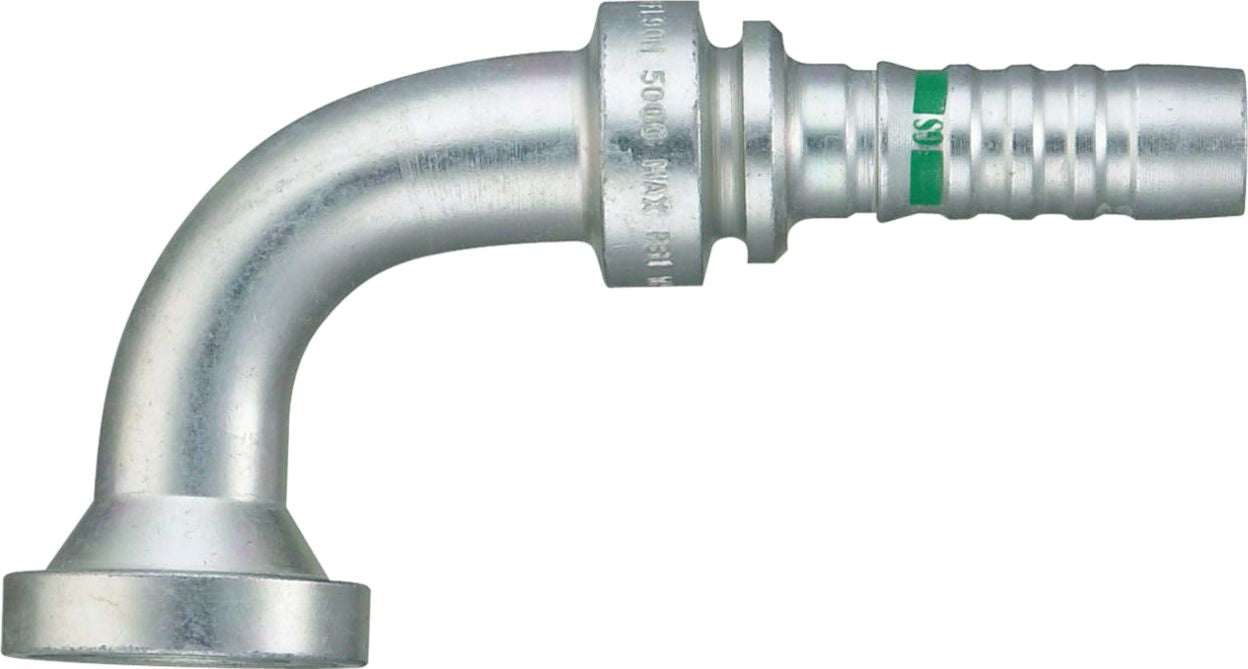

Global Spiral Series Split Flange Split Flange Code 61 90° 1-1/4 (-20)x 1 (-16) Crimp-on End Fitting
(Pack of
1)
SKU:23171 Item#: 23171
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Item#: 53979
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Item#: 88437
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23171 |
|---|---|
| Manufacturer Model #: | 20GS-16FL90M |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 90 Degrees |
| Fitting Drop Length | Medium |
| Fitting Dimension B (Working End) | 1 (-16) |
| Flange Diameter | 1.75 " |
| Gates Number | 20GS-16FL90M |
| Size | (-20)X(-16) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.59 lb |
