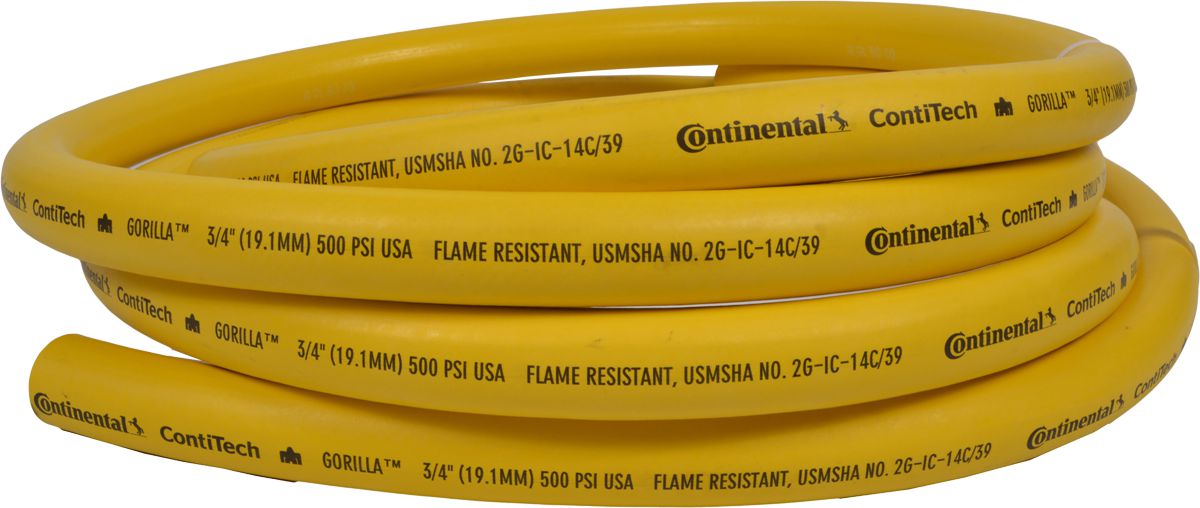

Gorilla Air/Multipurpose Hose 3/4" Yellow
(Pack of
500.0)
A premium-quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry, and shipbuilding. All sizes are rated at 500 PSI (3.4 MPa) maximum working pressure. Nonconductive, minimum electrical resistance greater than one (1) megaohm per inch of hose length at 1,000 Volts DC.
Construction
Tube: Nitrile synthetic rubber, RMA Class A (high oil resistance)
Cover: Yellow Carbryn® synthetic rubber, RMA Class A (high oil resistance) MSHA approved
Reinforcement: Spiral Flexten® yarn, 2" is braided synthetic yarn
Temperature: –20°F to +190°F (–29°C to +88°C)
Frequently Bought Together
Rubber Air Hose 3/4" x 15
Couldn't load pickup availability
Avagard Rubber Air Hose Bulk 1/4' x 300'
Couldn't load pickup availability
Bulk Air Hose 1/2 x 300'
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
180° Hose Reel Swivel Mount HRS180
Couldn't load pickup availability
OilShield Rubber Air Hose Assembly 1/2" x 50'
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
A premium-quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry, and shipbuilding. All sizes are rated at 500 PSI (3.4 MPa) maximum working pressure. Nonconductive, minimum electrical resistance greater than one (1) megaohm per inch of hose length at 1,000 Volts DC.Construction
Tube: Nitrile synthetic rubber, RMA Class A (high oil resistance)
Cover: Yellow Carbryn® synthetic rubber, RMA Class A (high oil resistance) MSHA approved
Reinforcement: Spiral Flexten® yarn, 2" is braided synthetic yarn
Temperature: –20°F to +190°F (–29°C to +88°C)
Technical Specifications
| Item#: | 23265 |
|---|---|
| Industrial/Hydraulic | Industrial |
| Type | Air and Multipurpose |
| Category/Performance | Best |
| Industry Rating | Cover and Inner Tube - RMA Class A (high oil resistance) |
| Manufacturer Series Number | 569-035 |
| Manufacturer Series Name | Gorilla |
| I.D. | 3/4 " |
| Dash Size | 3/4 (-12) |
| Working Pressure | 500 PSI |
| Hose O.D. | 1.19 " |
| Inner Tube Material | Nitrile Synthetic Rubber |
| Hose Reinforcement | Spiral Flexten Yarn |
| Hose Cover Material | Carbryn Synthetic Rubber |
| Temperature | -20F to +190F |
| Color | Yellow |
| Size | -12 x 500 |
| Weight per Foot | 0.41 |
| Material Number | 20026290 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
