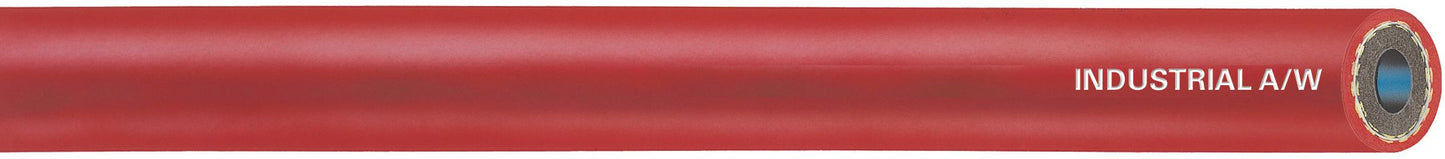

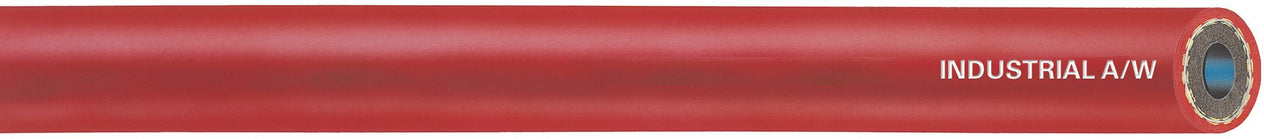

H1812 Industrial Air and Water Hose, EPDM Inner Tube, 2-Braid Reinforcement, Red, 250PSI, 5/8" ID
(Pack of
500)
SKU:41342 10 Item#: 41342 10
• Advantages:
– Age, heat- and ozone-resistant
– Limited oil resistance
– Excellent coupling retention for impulse applications
• Agency Ratings: N/A
• Fittings Certified:
– Z-Series
– Inserted Hose Ends: Standard Hose Barbs, Claw-Type Quick Acting, Long Shank Inserts
• Agency Approvals: N/A
• Construction:
– Inner Tube: EPDM
– Reinforcement: Fiber, two braid
– Cover: EPDM
• Color: Red
• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:
– Used for spraying and conveying water-based liquid fertilizers and pesticides
– Used for transfer of air and water
• Markets:
– Agriculture
– Assembly/manufacturers
– Construction
– Food industry
– Metalworking
– Mining
– Oil industry
– Paper/pulp
– Shipbuilding
– Fleet/service station
Frequently Bought Together
Avagard Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
Pro Rubber Jack Hammer Air Hose Assembly 3/4" x 100'
Couldn't load pickup availability
Push-on/Lock-on Rubber Hose 3/8" (-6) Black
Couldn't load pickup availability
Avagard PU Recoil Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
FLEXAIR 1/2" I.D. x 50' air hose assembly w/ High Flow safety coupler
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Advantages:– Age, heat- and ozone-resistant
– Limited oil resistance
– Excellent coupling retention for impulse applications
• Agency Ratings: N/A
• Fittings Certified:
– Z-Series
– Inserted Hose Ends: Standard Hose Barbs, Claw-Type Quick Acting, Long Shank Inserts
• Agency Approvals: N/A
• Construction:
– Inner Tube: EPDM
– Reinforcement: Fiber, two braid
– Cover: EPDM
• Color: Red
• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:
– Used for spraying and conveying water-based liquid fertilizers and pesticides
– Used for transfer of air and water
• Markets:
– Agriculture
– Assembly/manufacturers
– Construction
– Food industry
– Metalworking
– Mining
– Oil industry
– Paper/pulp
– Shipbuilding
– Fleet/service station
Technical Specifications
| Item#: | 41342 10 |
|---|---|
| Manufacturer Model #: | H181210-500R |
| Type | Air and Multipurpose |
| Manufacturer Series Number | H1812 |
| Manufacturer Series Name | Industrial A/W |
| Dash Size | -10 |
| Working Pressure | 250 PSI |
| Hose I.D. | 5/8 " |
| Hose O.D. | 1 " |
| Inner Tube Material | EPDM |
| Hose Reinforcement | 2-Braid |
| Hose Cover Material | EPDM |
| Temperature Range | -40F to +180 F |
| Color | Red |
| Quantity Per Package | 500.0000 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
