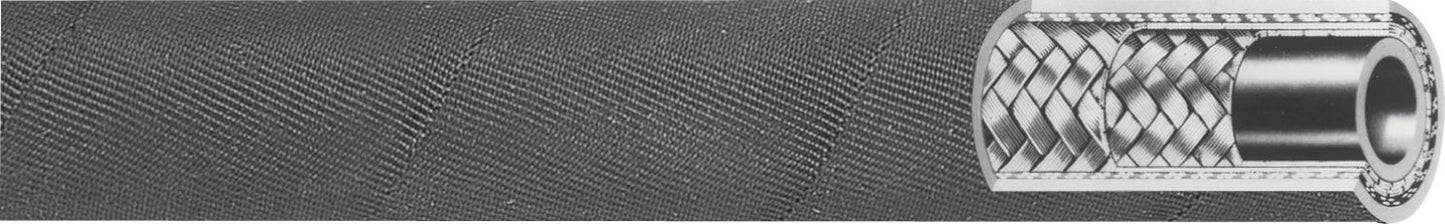

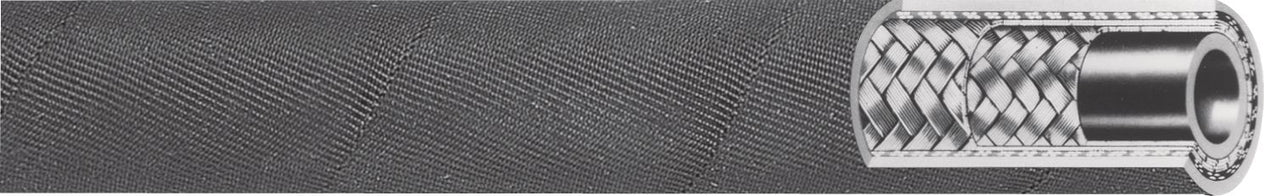

Weatherhead- H350- Rubber - Steel Braided- 2 Steel Braids- N/R- 3500 psi -1/2 (-8)
(Pack of
250)
SKU:20416 08 Item#: 20416 08
• Agency Ratings: Not rated• Fittings Certified: Z-Series (-6 to -10 only); U-Series (-6 and -8 only); 430U-Series (-12 and -16 only)• Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids (-6 to -12); 4-spiral (-16)– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Compatible with water/glycol, water and hydraulic fluids
– Provides 3,500 PSI working pressure rating for all sizes
Product Description
• Agency Ratings: Not rated• Fittings Certified: Z-Series (-6 to -10 only); U-Series (-6 and -8 only); 430U-Series (-12 and -16 only)• Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids (-6 to -12); 4-spiral (-16)– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Compatible with water/glycol, water and hydraulic fluids
– Provides 3,500 PSI working pressure rating for all sizes
Technical Specifications
| Item#: | 20416 08 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | N/R |
| Manufacturer Series Number | H350 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.81 " |
| Working Pressure | 3,500 PSI |
| Burst Pressure | 14,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 120.0 lb |
