Hand Wash Sink with Axion Eye/Face Wash Station, Wall Mount, Stainless Steel, 1.2 gpm Flow Rate, 24 in. Bowl, Silver
(Pack of
1)

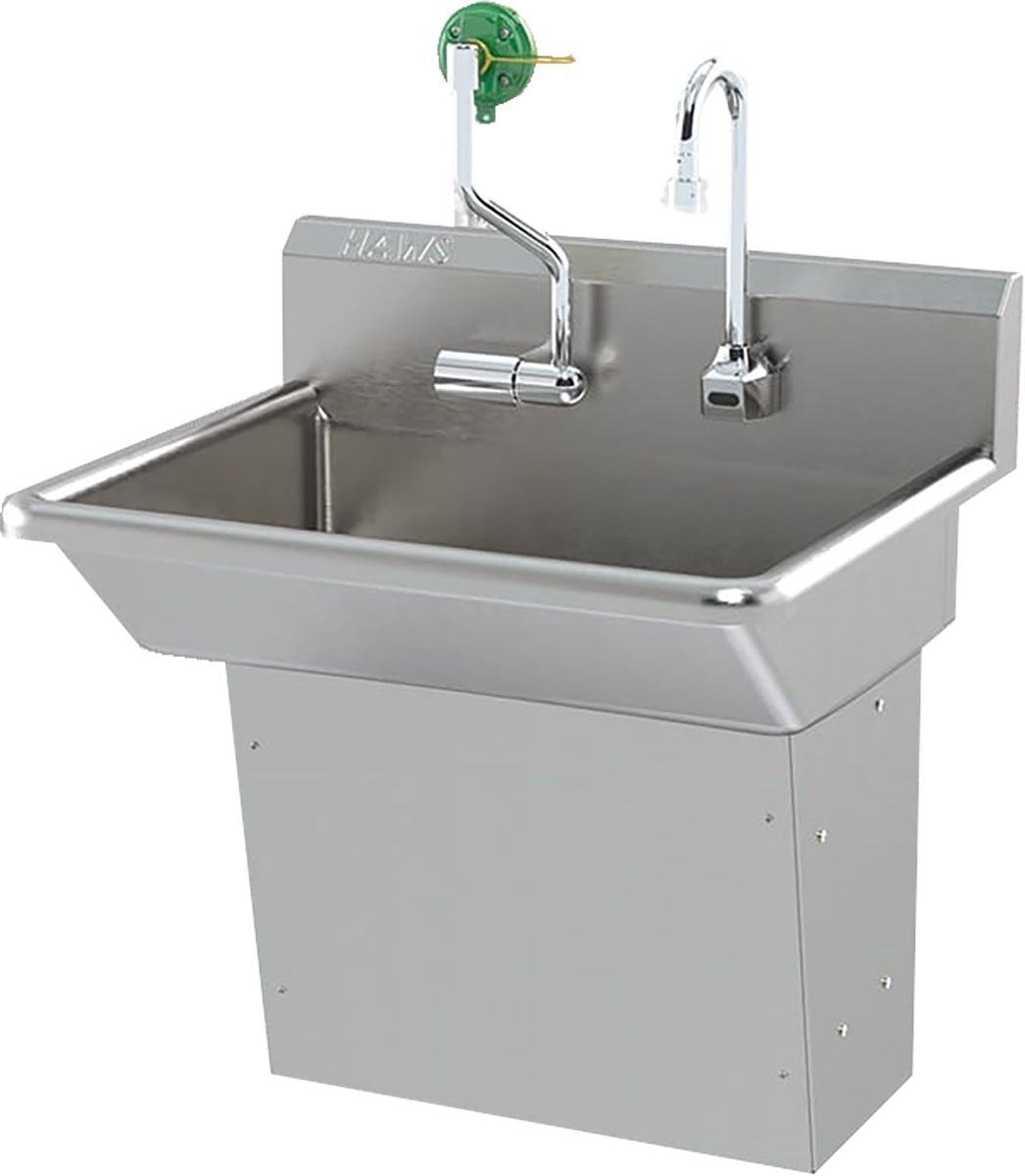

A wall-mounted, barrier-free, hand wash sink equipped with a motion-activated goose-neck faucet. 24" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is a pulldown eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.
• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet batteries, plumbing and drain through the large front panel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyewash Bottle, Screw Cap, 8 oz.
Couldn't load pickup availability
Classic Eye Wash Station Dust Cover
Couldn't load pickup availability
Drench Hose Sprays Single Head
Couldn't load pickup availability
Ear Plug Dispenser
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
TigerGrip 8 Mil Nitrile Glove Orange X-Large
Couldn't load pickup availability
Sqweeze® Hydration Freeze Pops
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Axion MSR Unmounted Eye/Face Wash
Couldn't load pickup availability
Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Product Description
A wall-mounted, barrier-free, hand wash sink equipped with a motion-activated goose-neck faucet. 24" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is a pulldown eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.• Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
• Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
• Mixing valve included supplies tepid water to the eyewash and faucet
• Beautiful satin finish resists stains and corrosion
• Easy access to the mixing valve, faucet batteries, plumbing and drain through the large front panel
Technical Specifications
| Item#: | 1647994 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face/Hand |
| Description | Eye/Face Wash Station |
| Flow Rate | 1.2 gal/min |
| Water Supply | 1-1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA B125.1, CSA B45.4, NSF61, ASSE 1017, ASSE 1070-2015, ADA Compliant |
| Material | Stainless Steel |
| Mount Style | Wall |
| Color | Silver |
| Eyewash Bowl Diameter | 24 " |
| Width | 20 " |
| Height | 35-3/8 " |
| Eye Wash Material | Stainless Steel |
| Body Material | Stainless Steel |
| Includes | Universal Eyewash Sign, Operation Label, Template |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
