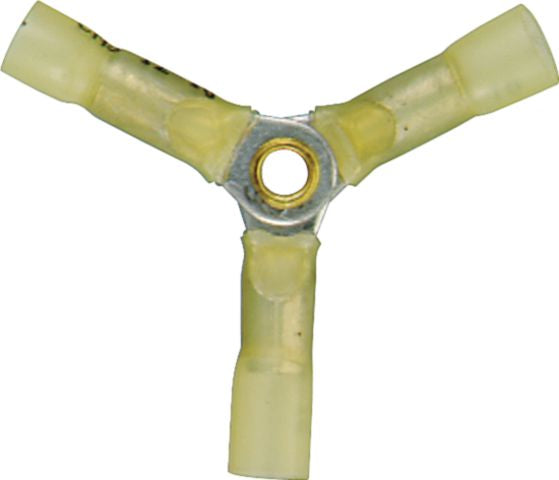

Heat Seal 3-Way Butt Connector 12 to 10 AWG
(Pack of
10)
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.
• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
• Tensile strength: 2,200 PSI• Elongation: 600%• Rated at 600V
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-13
Frequently Bought Together
Heat Seal 3-Way Butt Connector 16 to 14 AWG
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
• Tensile strength: 2,200 PSI• Elongation: 600%• Rated at 600V
Technical Specifications
| Item#: | 53287 |
|---|---|
| Wire Gauge | 12-10 AWG |
| Stud Size | 6 |
| Color | Yellow |
| Description | Three-Way Connector - Stud Size: #6 |
| Style | 3-piece heat seal three way butt connectors |
| Type | Crimp and Heat Shrink |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
