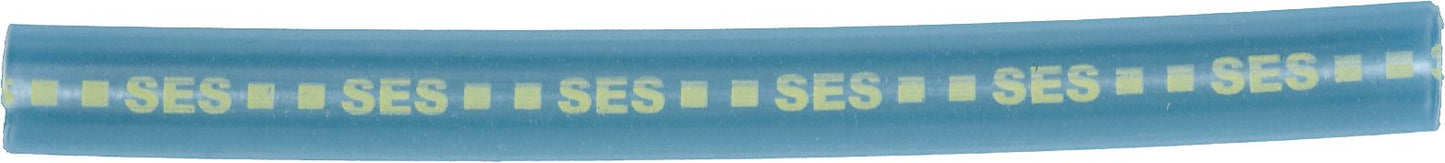

Adhesive Heat Shrink Tubing, 14 to 4 AWG, Clear/Yellow, 6" Length, 0.45" ID Before and 0.105" ID After Shrinkage, 4:1 Ratio
(Pack of
8)
• 4:1 shrink ratio
• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-33
Frequently Bought Together
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Black
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 1 1/0 2/0 AWG Blue
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 60'
Couldn't load pickup availability
Product Description
• 4:1 shrink ratio• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 16326 |
|---|---|
| Type | Pre-Cut |
| Wire Gauge Coverage | 14-4 AWG |
| Length | 6 " |
| Color | Clear/Yellow |
| I.D. Before Shrinkage | 0.450 " |
| I.D. After Shrinkage | 0.105 " |
| Shrink Ratio | 4 to 1 |
| Dielectric Strength | 500 V/mm |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
