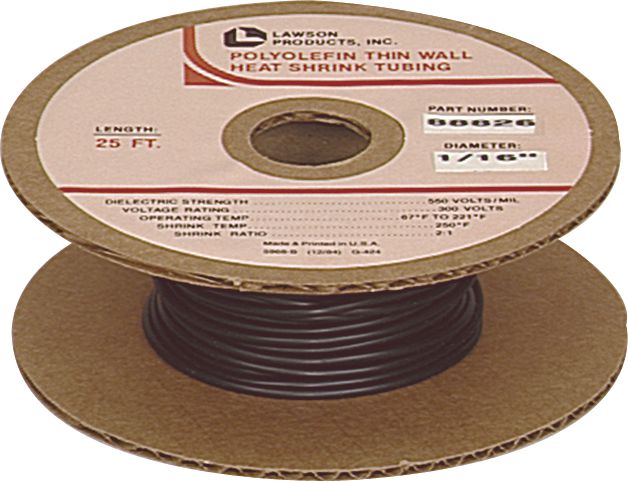

Heat Shrink Tubing, 26 to 24 AWG, 1/16" Diameter, 25' Length, 0.062" ID Before and 0.031" ID After Shrinkage, 2:1 Shrink Ratio
(Pack of
1)
SKU:88826 Item#: 88826
• 2:1 shrink ratio
• Irradiated
• Flame-retardant
• Black
• Supplied in 25-ft. rolls
• Tensile strength: 1,800 PSI
• Elongation: 400%
• Dielectric strength: 550V/mil
• Operating temperature: –67°F to +221°F (–55°C to +105°C)
• Rated at 300V
• Use for electrical and electro-mechanical insulation applications
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-36
Frequently Bought Together
Cable Tie 7.31" Black
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Black
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.413" ID 25'
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Irradiated
• Flame-retardant
• Black
• Supplied in 25-ft. rolls
• Tensile strength: 1,800 PSI
• Elongation: 400%
• Dielectric strength: 550V/mil
• Operating temperature: –67°F to +221°F (–55°C to +105°C)
• Rated at 300V
• Use for electrical and electro-mechanical insulation applications
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 88826 |
|---|---|
| Type | Roll |
| Style | Thin Wall |
| Wire Gauge Coverage | 26-24 AWG |
| Diameter | 1/16 " |
| Length | 25 ft |
| Color | Black |
| I.D. Before Shrinkage | .062 " |
| I.D. After Shrinkage | .031 " |
| Shrink Ratio | 2 to 1 |
| Wall Thickness After Shrinkage | 0.017 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 300 V |
| Temperature Rating | -67 to 221 °F |
| Elongation | 400 % |
| Tensile Strength | 1,800 PSI |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.1 lb |
