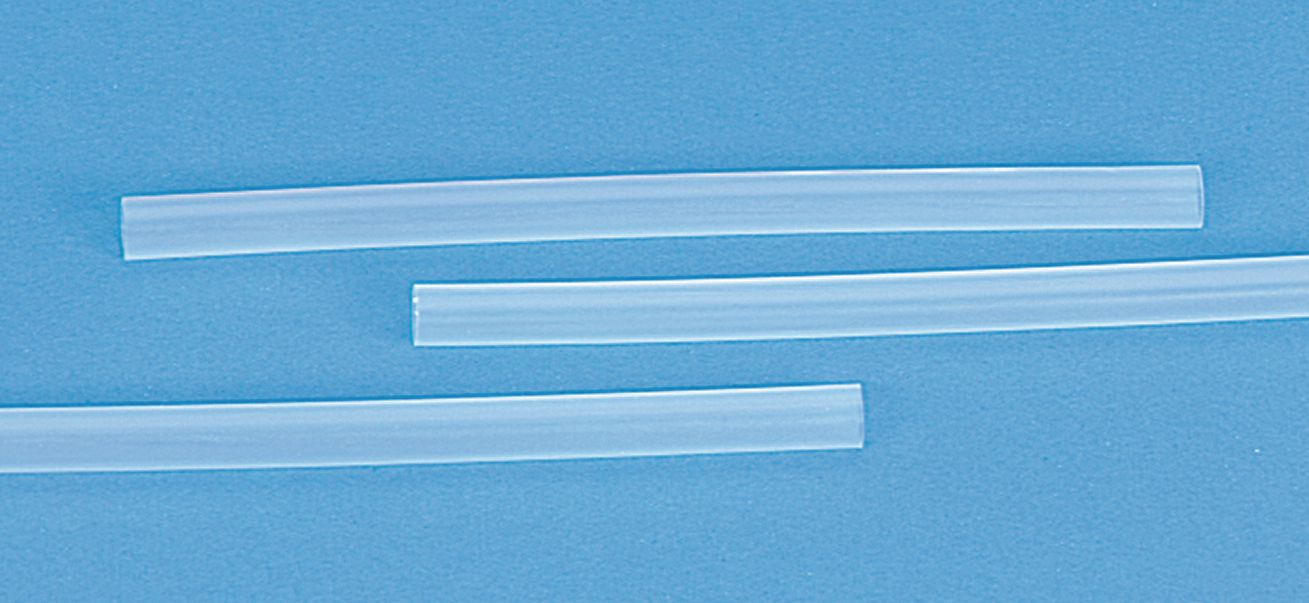

Heat Shrink Tubing 8 to 2 AWG Clear
(Pack of
6.0)
• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Clear tubing allows visual inspection of wire and terminal• Tensile strength: 2,200 PSI• Elongation: 500%• Volume resistivity: 1015 Ohm/cm• Heat shock: Four hours at 482°F (250°C)• Longitudinal change: Less than 5%• Not flame-retardant• Secant modulus: 27,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
• Use over wire markers for permanent identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-33
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability

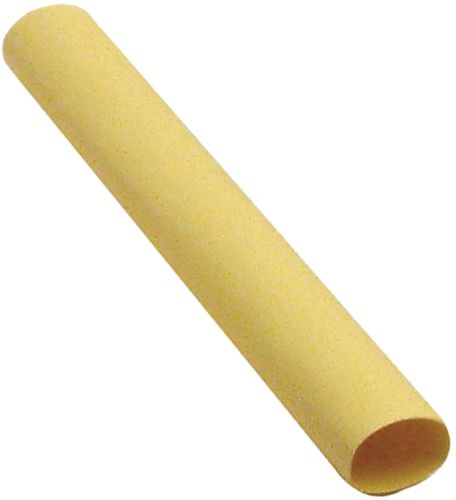

Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Couldn't load pickup availability
Vinyl Electrical Tape White 3/4" x 66'
Couldn't load pickup availability
Product Description
• 2.5:1 shrink ratio• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Clear tubing allows visual inspection of wire and terminal• Tensile strength: 2,200 PSI• Elongation: 500%• Volume resistivity: 1015 Ohm/cm• Heat shock: Four hours at 482°F (250°C)• Longitudinal change: Less than 5%• Not flame-retardant• Secant modulus: 27,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
• Use over wire markers for permanent identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 89467 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 8-2 AWG |
| Length | 6 " |
| Color | Clear |
| I.D. Before Shrinkage | .500 " |
| I.D. After Shrinkage | .195 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.055 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 500 % |
| Tensile Strength | 2,200 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 27,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
