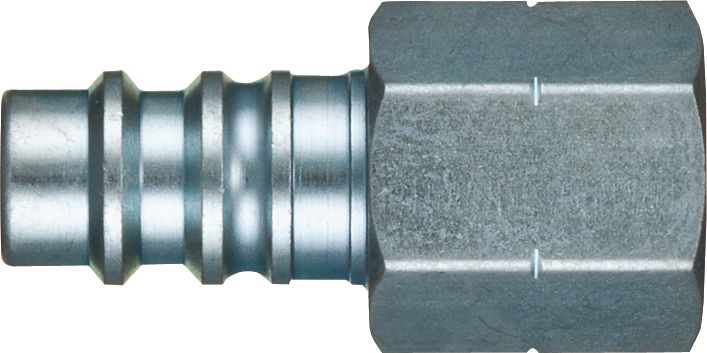

Heavy-Duty Quick Disconnect Plug Steel 1/4 High Flow Female NPTF 3/8-18
(Pack of
1)
SKU:KT15111 Item#: KT15111
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Frequently Bought Together
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Item#: DY89320050
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Item#: DA6152
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Item#: 53979
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15111 |
|---|---|
| Manufacturer Model #: | CJ2F3-LG |
| Description | Heavy-Duty Quick Disconnect |
| Type | Nipple |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPT |
| Thread Size | 3/8-18 |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
