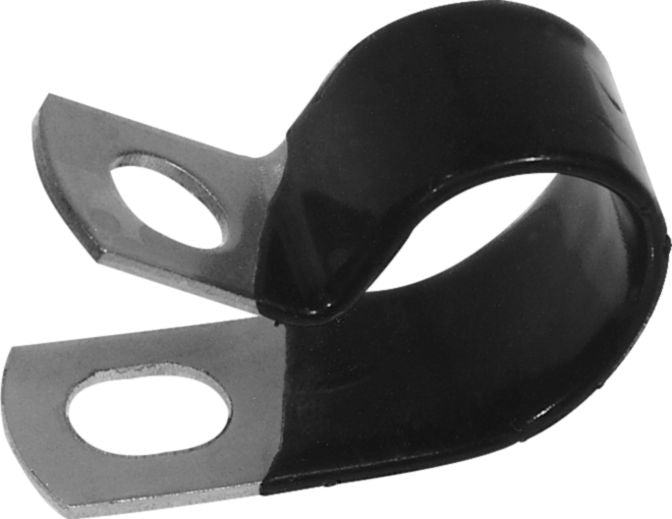

Heavy-Duty Vinyl Insulated Cable Clamp, 7/16" Internal Diameter, 3/4" Width, 0.406" Hole Diameter
(Pack of
25)
SKU:17006 Item#: 17006
• Black vinyl-coated and plated to prevent abrasion and chemical action and provide electrical insulation
• Excellent resistance to gasoline, oil, grease, strong alkalis and detergents
• Width:
- 1/4" Mounting Hole: 0.50"
- 3/8" Mounting Hole: 0.75"
• Coating hardness: 65-75 Durometer (Shore A)
• Coating thickness: 0.032"
• Dielectric strength: 200V per mil of thickness
• Metal gauge: 0.031" (1/4" to 3/8"); 0.048" (above 3/8")
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-58
Frequently Bought Together
Heavy-Duty Vinyl Insulated Cable Clamp 2-1/4"
Couldn't load pickup availability
Neoprene Cushioned Cable Clamp 3/4''
Couldn't load pickup availability
Neoprene Cushioned Cable Clamp 7/8''
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/16"
Couldn't load pickup availability
Color-Coded Nylon Cable Tie 8" Purple
Couldn't load pickup availability
Neoprene Cushioned Cable Clamp 3/4"
Couldn't load pickup availability
Heavy-Duty Vinyl-Coated Cable Clamps Assortment, 8 Items, 90 Pieces
Couldn't load pickup availability
Nylon Cable Clamp 1/4"
Couldn't load pickup availability
Heavy-Duty Vinyl-Coated Cable Clamps Assortment, 8 Items, 160 Pieces
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Product Description
• Black vinyl-coated and plated to prevent abrasion and chemical action and provide electrical insulation• Excellent resistance to gasoline, oil, grease, strong alkalis and detergents
• Width:
- 1/4" Mounting Hole: 0.50"
- 3/8" Mounting Hole: 0.75"
• Coating hardness: 65-75 Durometer (Shore A)
• Coating thickness: 0.032"
• Dielectric strength: 200V per mil of thickness
• Metal gauge: 0.031" (1/4" to 3/8"); 0.048" (above 3/8")
Technical Specifications
| Item#: | 17006 |
|---|---|
| Type | Heavy Duty |
| Style | 3/8" Mounting Hole |
| I.D. | 7/16 " |
| Width | 3/4 " |
| Hole Diameter | 0.406 " |
| Industry Number | 7 |
| Metal Gauge | 0.048 " |
| Dielectric Strength | 200 V/mm |
| Coating Durometer | 65 - 75 Shore A |
| Coating Thickness | 0.032 " |
| Temperature Range | -30 to 180 F |
| UNSPSC #: | 39121705 |
| TAA Compliant: | Yes |
| Weight: | 0.88 lb |
