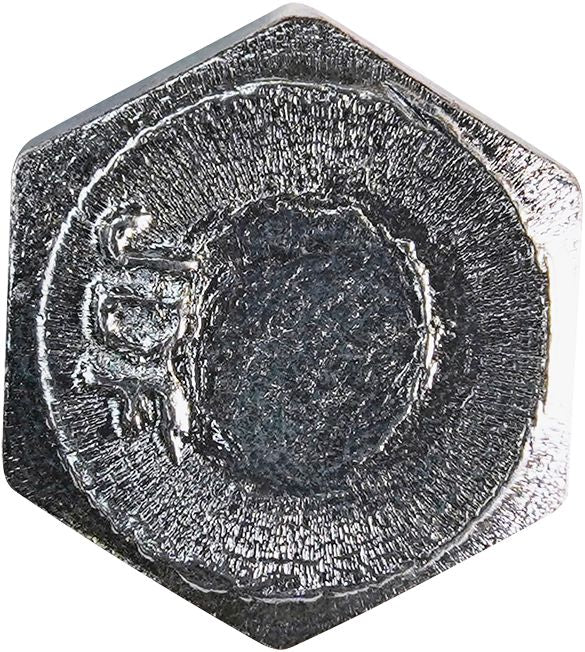

Hex Cap Screw Grade 2 1/2-13 x 5"
(Pack of
50.0)
• UNC threads
• Also for use as a high-grade machine bolt
• SAE-approved cold-forming steel
• Full diameter shank
• Rolled threads
• Manufactured to SAE Grade 2 specifications
• Class 2A thread fit
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4" Over 6" Long: (2 x Diameter) + 1/2
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 3-25
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
• UNC threads• Also for use as a high-grade machine bolt
• SAE-approved cold-forming steel
• Full diameter shank
• Rolled threads
• Manufactured to SAE Grade 2 specifications
• Class 2A thread fit
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4" Over 6" Long: (2 x Diameter) + 1/2
Technical Specifications
| Item#: | 4068 |
|---|---|
| Style | Standard |
| Diameter | 1/2 " |
| Thread Pitch | 13 |
| Thread | Coarse |
| Length | 5 " |
| Type | Hex Cap Screw |
| Across Flats | 3/4 " |
| Material | Carbon Steel |
| Grade | 2 |
| Finish | Bright Zinc |
| Tensile Strength | 74,000 PSI |
| Head Style | Hex |
| Head Height | 5/16 " |
| Thread Form | UNR |
| Thread Length | Partial |
| Thread Length Minimum | 1-1/4 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 15.17 lb |
