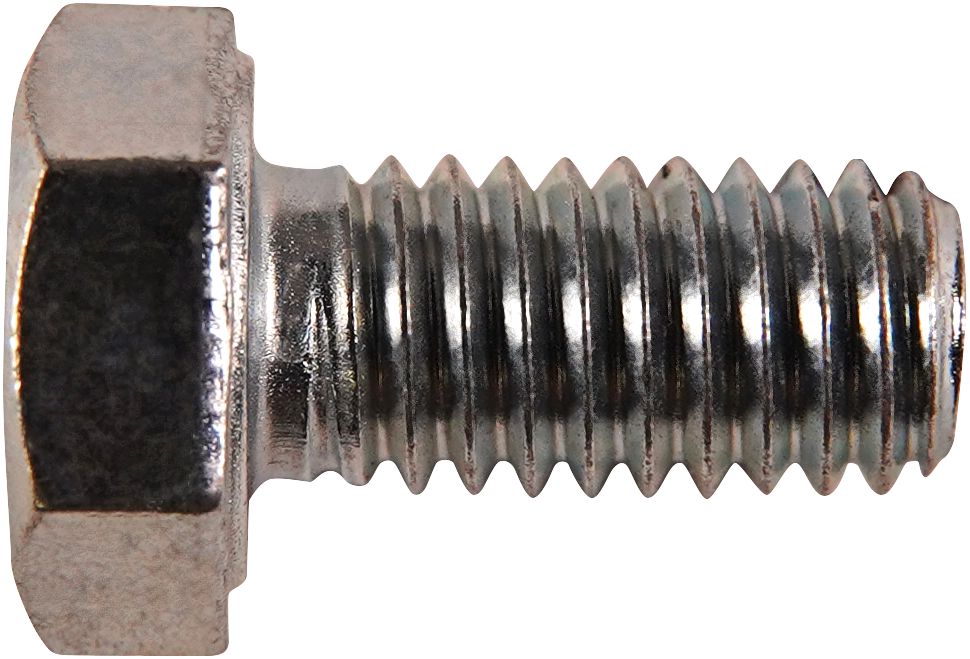

Hex Cap Screw Property Class 10.9 M6-1 x 12mm
(Pack of
50.0)
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 3-40
Frequently Bought Together
Hex Cap Screw Grade 5 1/2-13 x 2-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/2-13 x 2"
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/2-13 x 2-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/2-13 x 2"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 3/8-16
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/4"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 10203 |
|---|---|
| Style | Industry Standard |
| Diameter | M6 |
| Thread Pitch | 1.0 mm |
| Thread | Coarse |
| Length | 12 mm |
| Type | Hex Cap Screw |
| Across Flats | 10 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Bright Zinc |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 4 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 0.51 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
