Home Bolts Hex Flange Bolt Grade 8 5/8-11 x 1-1/2"
Bolts

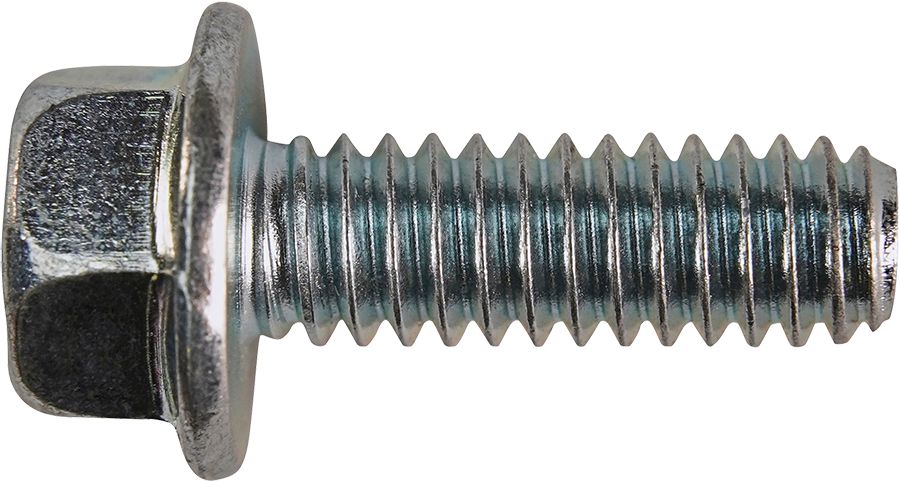

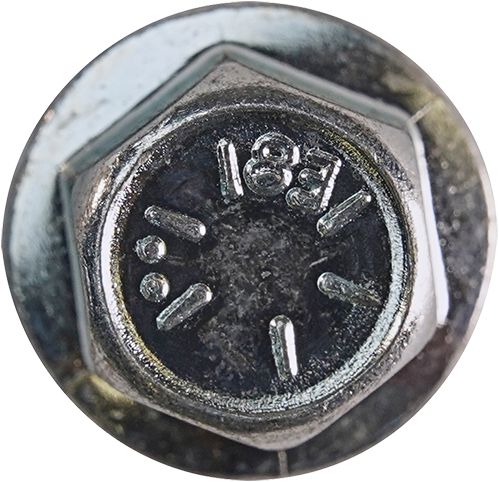

Hex Flange Bolt, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 15/16" Across Flats, 5/8-11 x 1-1/2"
(Pack of 25)

Lawson Products

• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 3-58

Frequently Bought Together


Hex Cap Screw Grade 8 3/8-16 x 1-1/4"

Item#: FA68033

Hex Cap Screw Grade 8 5/8-11 x 2"

Item#: FA68098

Hex Cap Screw Grade 5 3/8-16 x 1-1/2"

Item#: FA65034

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Hex Flange Bolt Grade 10.9 M6-1 x 25mm

Item#: 28681

Hex Flange Bolt Grade 10.9 M6-1 x 12mm

Item#: 28678

Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm

Item#: 59732

Butt Connector 22 to 18 AWG Clear

Item#: 1368140

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

Butt Connector 16 to 14 AWG Blue

Item#: 92823

Product Description

• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment

Technical Specifications

Item#: 86475
Type Hex Flange Bolt
Diameter 5/8 "
Thread Pitch 11
Thread Coarse
Length 1-1/2 "
Finish Bright Zinc
Material Alloy Steel
Grade 8
Head Style Hex Flange
Size 5/8-11 "
Across Flats 15/16 "
Specifications IFI-111
Tensile Strength 150,000 PSI
Maximum Temperature 650 °F
UNSPSC #: 31161620
TAA Compliant: Yes
Weight: 6.35 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
