Home Bolts Hex Flange Bolt Grade 8 5/8-11 x 2-1/4"
Bolts

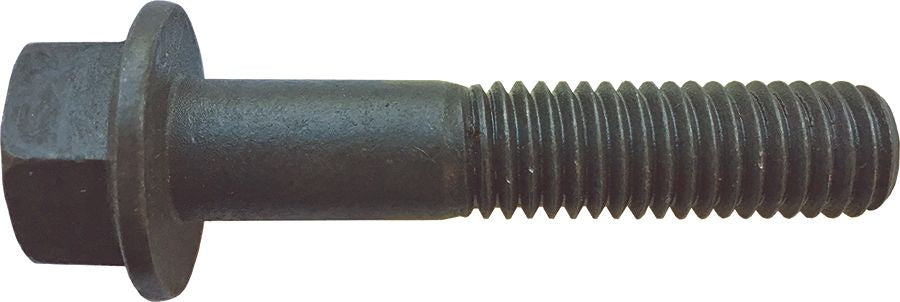

Hex Flange Bolt Grade 8 5/8-11 x 2-1/4"
(Pack of 10.0)

Lawson Products

• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 3-59

Frequently Bought Together


Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1"

Item#: 632

Hex Cap Screw Grade 8 1/2-13 x 2"

Item#: FA68064

Hex Cap Screw Grade 8 1/4-20 x 3/4"

Item#: FA68001

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Hex Flange Bolt Grade 10.9 M6-1 x 12mm

Item#: 28678

DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 20mm

Item#: 59408

Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm

Item#: 55608

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Vision Pro Super

Item#: DY21061040

Butt Connector 22 to 18 AWG Red

Item#: 92822

Product Description

• Available in coarse and fine thread
• Dimensions conform to IFI-111
• 150,000 PSI minimum tensile strength
• Maximum service temperature: 650°F (343°C)
• Specially designed for truck frame bolting
• For use on Freightliner, Mack, Western, White, Autocar, Peterbilt, IHC and other types of heavy equipment

Technical Specifications

Item#: 1586587
Type Hex Flange Bolt
Diameter 5/8 "
Thread Pitch 11
Thread Coarse
Length 2-1/4 "
Finish Black Phosphate & Oil
Material Alloy Steel
Grade 8
Flange Diameter 1.330 "
Head Style Hex Flange
Head Height 0.620 "
Across Flats 15/16 "
Specifications IFI-111
Tensile Strength 150,000 PSI
UNSPSC #: 31161620
TAA Compliant: No
Weight: 3.1 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
