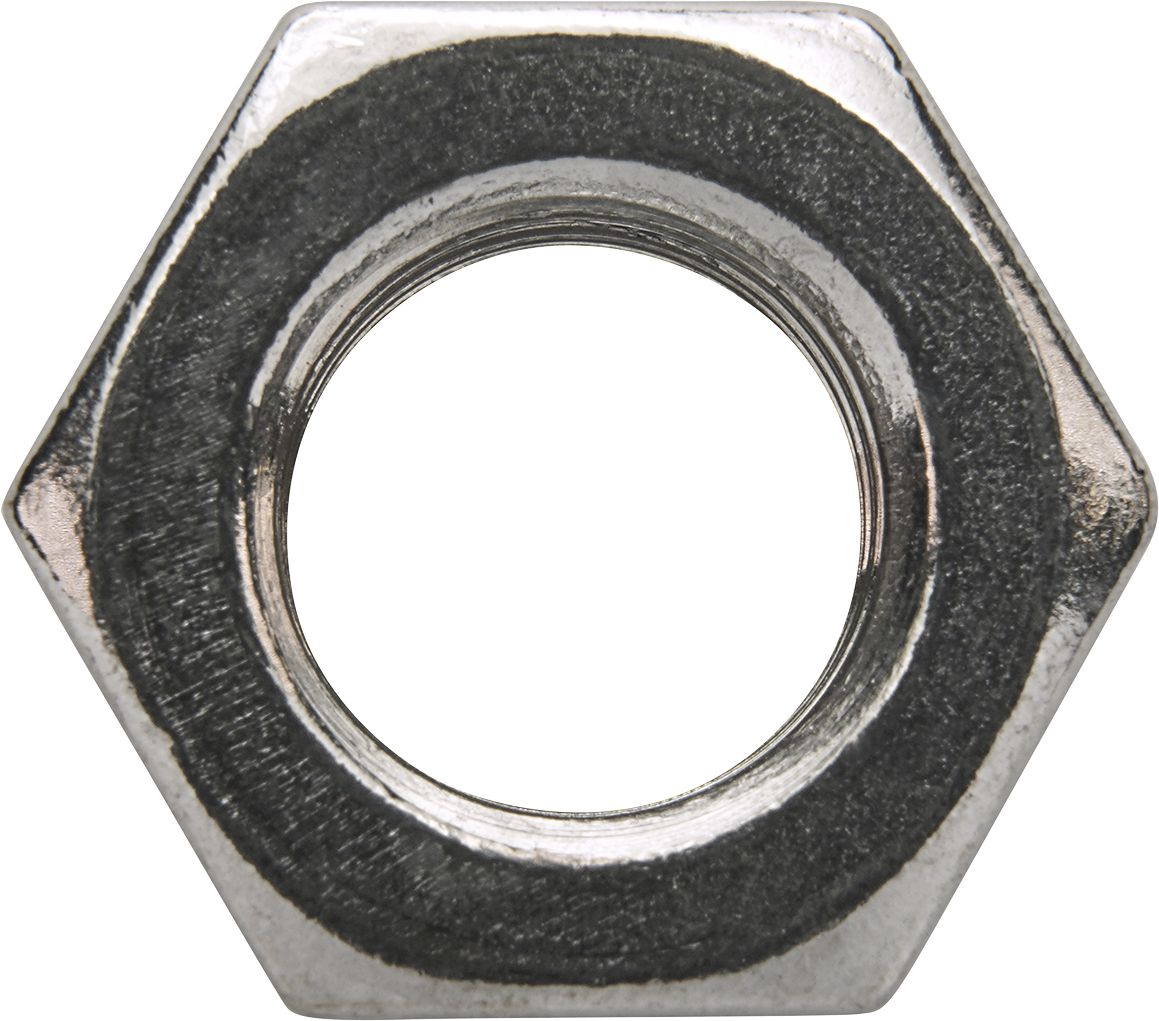

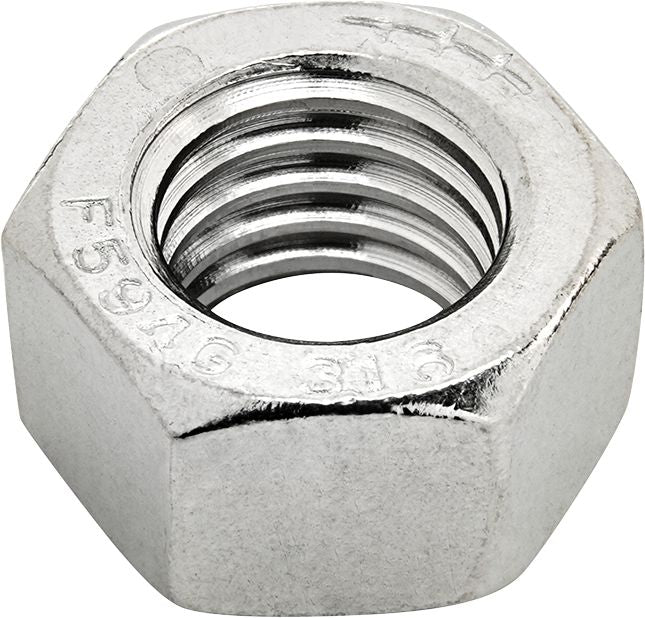

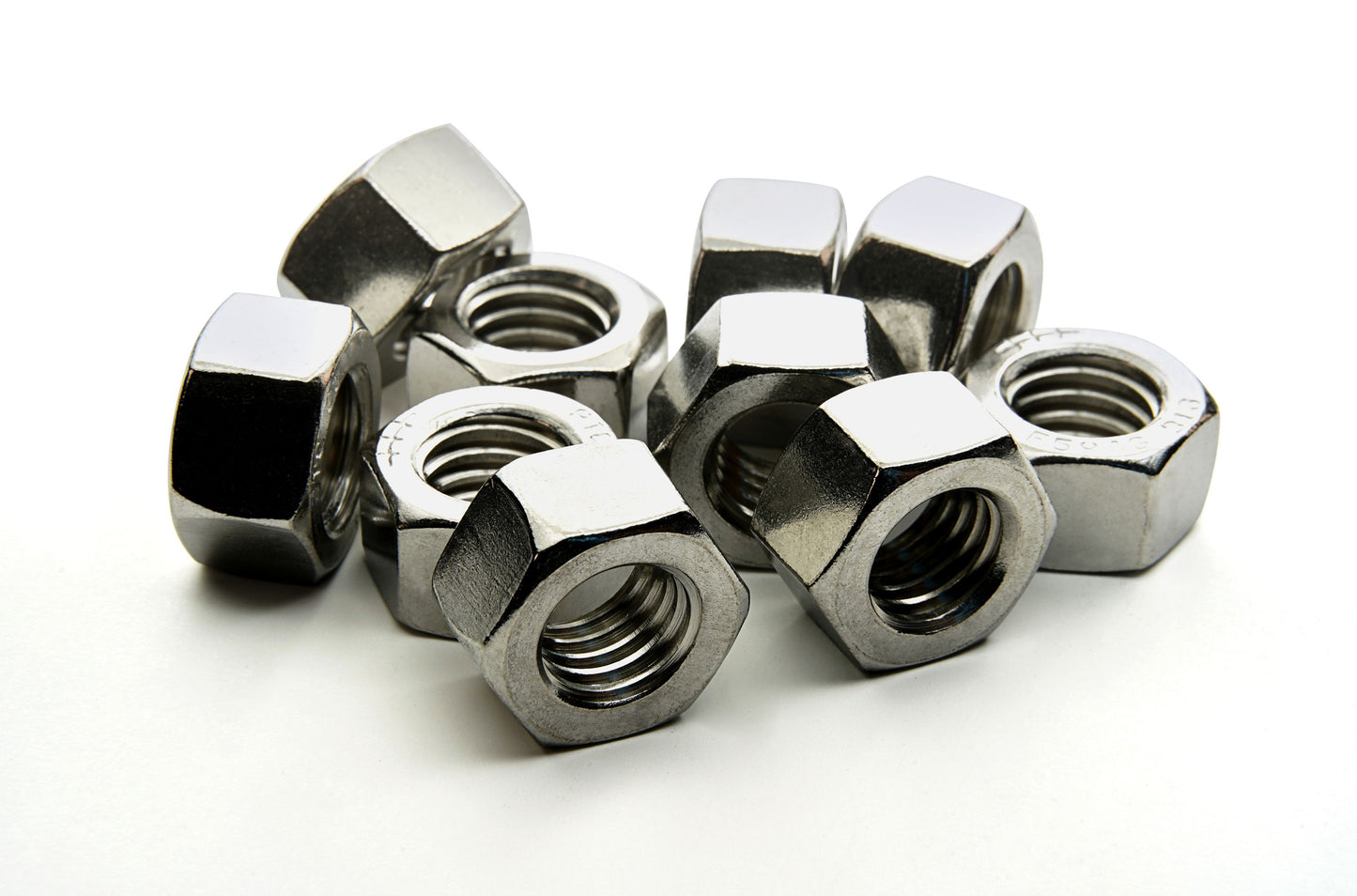

ANSI B18.2.2 Hex Nut, 316 Stainless Steel, Plain Finish, Coarse Thread, 3/4" Across Flats, 7/16" Thickness, 1/2-13
(Pack of
10)
SKU:81871 Item#: 81871
The use of stainless steel fasteners lengthens the life of equipment, reduces maintenance and repairs, and can prevent injury or death from product damage.
• Superior resistance to heat and corrosion compared to Type 304 or Type 18-8 steels
• Non-magnetic
• Low electrical conductivity
• Longer life in acids, bases and seawater than Type 18-8 Stainless Steel
• A superior stainless steel for extreme temperatures: –460°F to +1,500°F (–273°C to +815°C)
• UNC coarse thread
• Meets ASTM F-594
• Used in the food, chemical, petroleum and other industries with high-corrosion environments
Couldn't load pickup availability
Catalog page#: 3-49
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 8 Steel M5-0.8
Couldn't load pickup availability
Hex Nut Thick Grade 12 Alloy Steel M6-1
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/4-10
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Product Description
The use of stainless steel fasteners lengthens the life of equipment, reduces maintenance and repairs, and can prevent injury or death from product damage.• Superior resistance to heat and corrosion compared to Type 304 or Type 18-8 steels
• Non-magnetic
• Low electrical conductivity
• Longer life in acids, bases and seawater than Type 18-8 Stainless Steel
• A superior stainless steel for extreme temperatures: –460°F to +1,500°F (–273°C to +815°C)
• UNC coarse thread
• Meets ASTM F-594
• Used in the food, chemical, petroleum and other industries with high-corrosion environments
Technical Specifications
| Item#: | 81871 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 13 |
| Type | Hex Nut |
| Grade | 316 |
| Finish | Plain |
| Material | Stainless Steel |
| Thickness | 7/16 " |
| Across Flats | 3/4 " |
| Thread | Coarse |
| Size | 1/2-13 " |
| Specifications | ANSI B18.2.2 |
| UNSPSC #: | 31161727 |
| TAA Compliant: | No |
| Weight: | 0.37 lb |
