Hex Nut Grade 8 Alloy Steel 5/16-24
(Pack of
100)
• High-strength fine grain steel
• Three-stage heat treating
• Full finished nut dimensions
• Improved torque reliability
• Greater load consistency

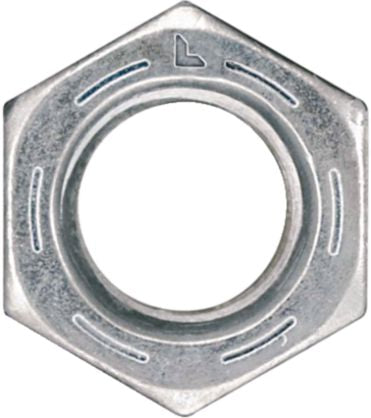

• Six equally-spaced radial lines and Lawson logos identify matched strength Tuff-Torq® Nuts
• Meets SAE J995 Grade 8 strength requirements
• ANSI Class 2B thread fit
• Specifically designed for use with Lawson’s Tuff-Torq® Cap Screws to provide a matched strength fastening system
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 3-12
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 10 Alloy Steel M6-1
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 7/16-14
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
• High-strength fine grain steel• Three-stage heat treating
• Full finished nut dimensions
• Improved torque reliability
• Greater load consistency
• Six equally-spaced radial lines and Lawson logos identify matched strength Tuff-Torq® Nuts
• Meets SAE J995 Grade 8 strength requirements
• ANSI Class 2B thread fit
• Specifically designed for use with Lawson’s Tuff-Torq® Cap Screws to provide a matched strength fastening system
Technical Specifications
| Item#: | A111 |
|---|---|
| Diameter | 5/16 " |
| Thread Pitch | 24 |
| Type | Hex Nut |
| Grade | 8 |
| Finish | Bright Zinc |
| Material | Alloy Steel |
| Thickness | 17/64 " |
| Across Flats | 1/2 " |
| Thread | Fine |
| Size | 5/16-24 " |
| Specifications | ANSI B18.2.2 |
| UNSPSC #: | 31161727 |
| TAA Compliant: | Yes |
| Weight: | 1.06 lb |
