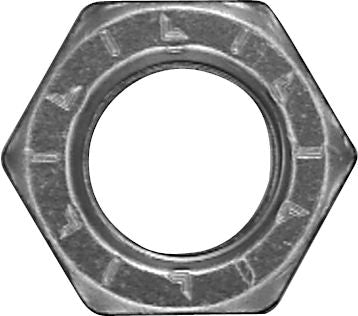

Hex Nut Thick Grade 9 Alloy Steel 5/8-11
(Pack of
25.0)
• Specifically designed for use with Lawson Tru-Torq® Cap Screws to provide a matched strength fastening system
• Double heat-treated to meet Lawson’s rigid quality control specifications
• Extra nut thickness offers a larger wrenching surface
• Manufactured from prime, high-strength, fine grain steel
• Hex Thick Nut dimensional specifications
• Identified by six slash marks evenly interspaced with six Lawson “L” markings on the face of the nut
• Heat-treated to 180,000 PSI minimum proof-load strength
• Conforms to ANSI B18.2.2
• Precision threads meeting ANSI Class 2B thread fit
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 3-10
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/4-10
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
• Specifically designed for use with Lawson Tru-Torq® Cap Screws to provide a matched strength fastening system• Double heat-treated to meet Lawson’s rigid quality control specifications
• Extra nut thickness offers a larger wrenching surface
• Manufactured from prime, high-strength, fine grain steel
• Hex Thick Nut dimensional specifications
• Identified by six slash marks evenly interspaced with six Lawson “L” markings on the face of the nut
• Heat-treated to 180,000 PSI minimum proof-load strength
• Conforms to ANSI B18.2.2
• Precision threads meeting ANSI Class 2B thread fit
Technical Specifications
| Item#: | 82887 |
|---|---|
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Type | Thick Hex Nut |
| Grade | 9 |
| Finish | Bright Zinc |
| Material | Alloy Steel |
| Thickness | 23/32 " |
| Across Flats | 15/16 " |
| Thread | Coarse |
| Size | 5/8-11 " |
| Specifications | ANSI B18.2.2 |
| UNSPSC #: | 31161727 |
| TAA Compliant: | Yes |
| Weight: | 2.39 lb |
