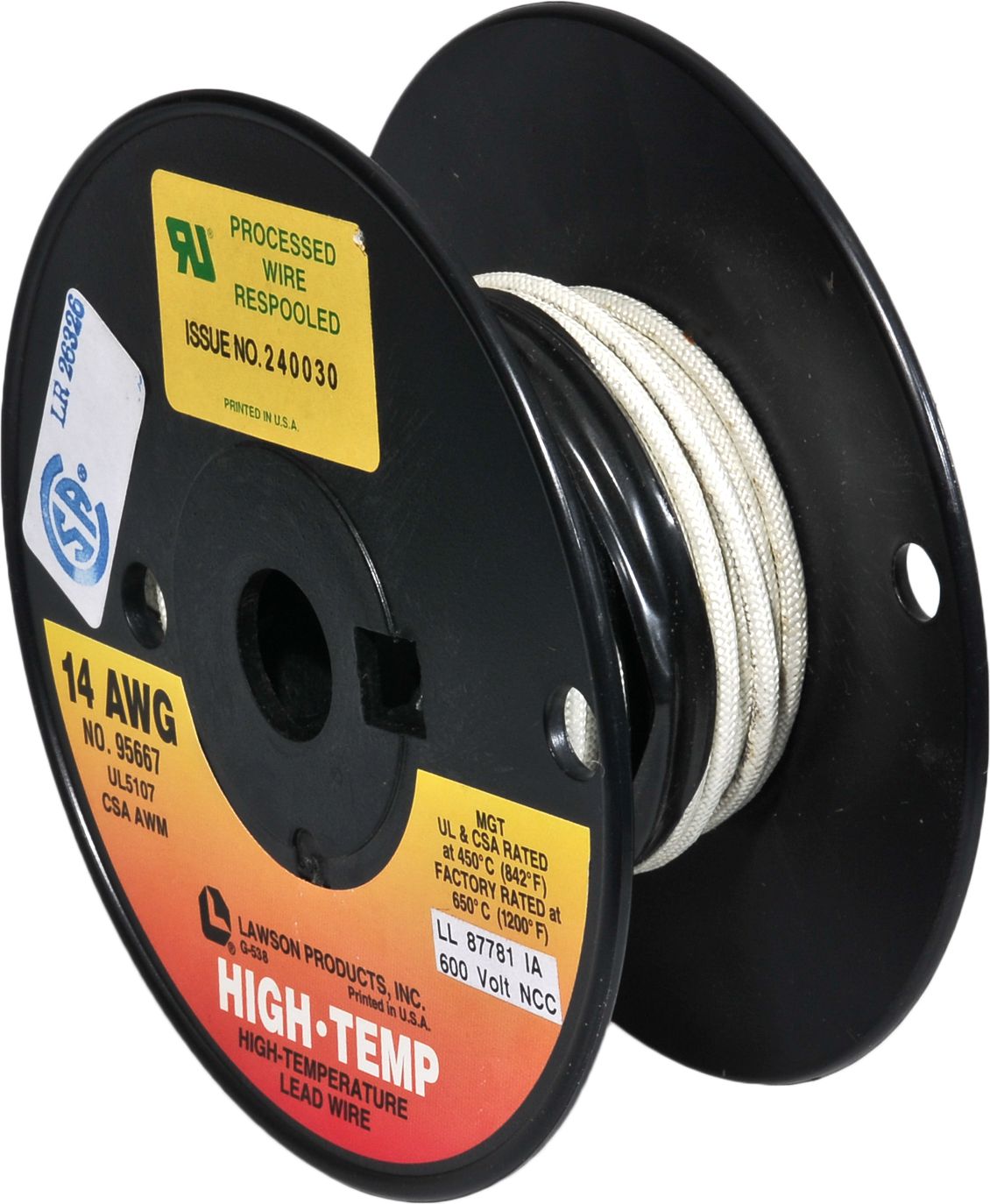

High Temperature Lead Wire, 14 AWG, 600 Volts, 25' Length, Nickel Coated Copper Conductor, Teflon Glass Braid Insulation
(Pack of
1)
SKU:95667 Item#: 95667
• 25 feet per roll
• Carries the highest UL/CSA lead wire rating, 842°F (450°C), and is factory-rated at 1,200°F (650°C)• 600V• UL 5107• CSA AWM
• Designed for industrial heating products such as commercial food service equipment, heaters, kilns, heat-treating equipment and heater elements
Couldn't load pickup availability
Catalog page#: 17-5
Frequently Bought Together
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 4C 100'
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' White
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 4C 100'
Couldn't load pickup availability

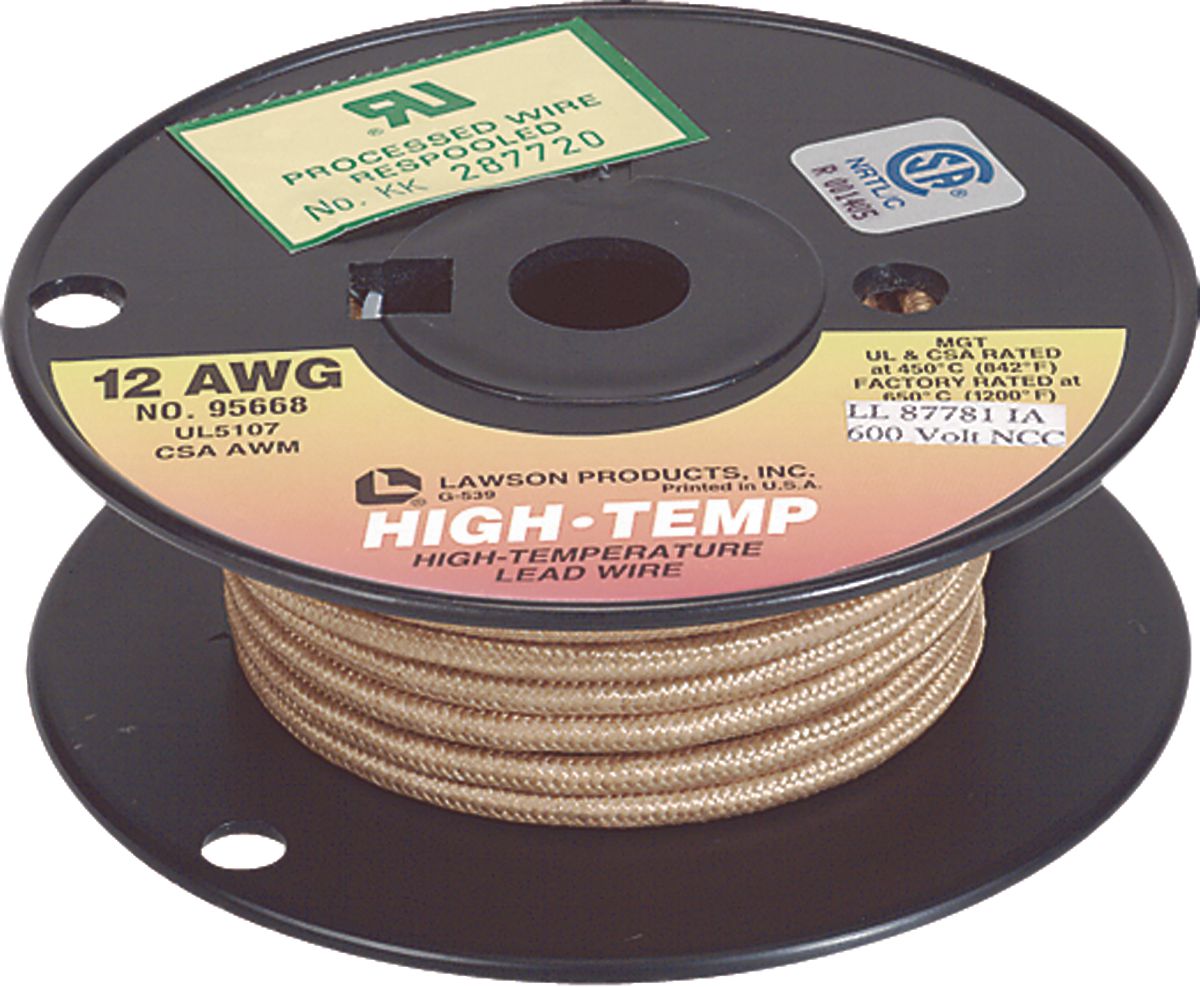

Hi-Temp Lead Wire 12 AWG 25'
Couldn't load pickup availability

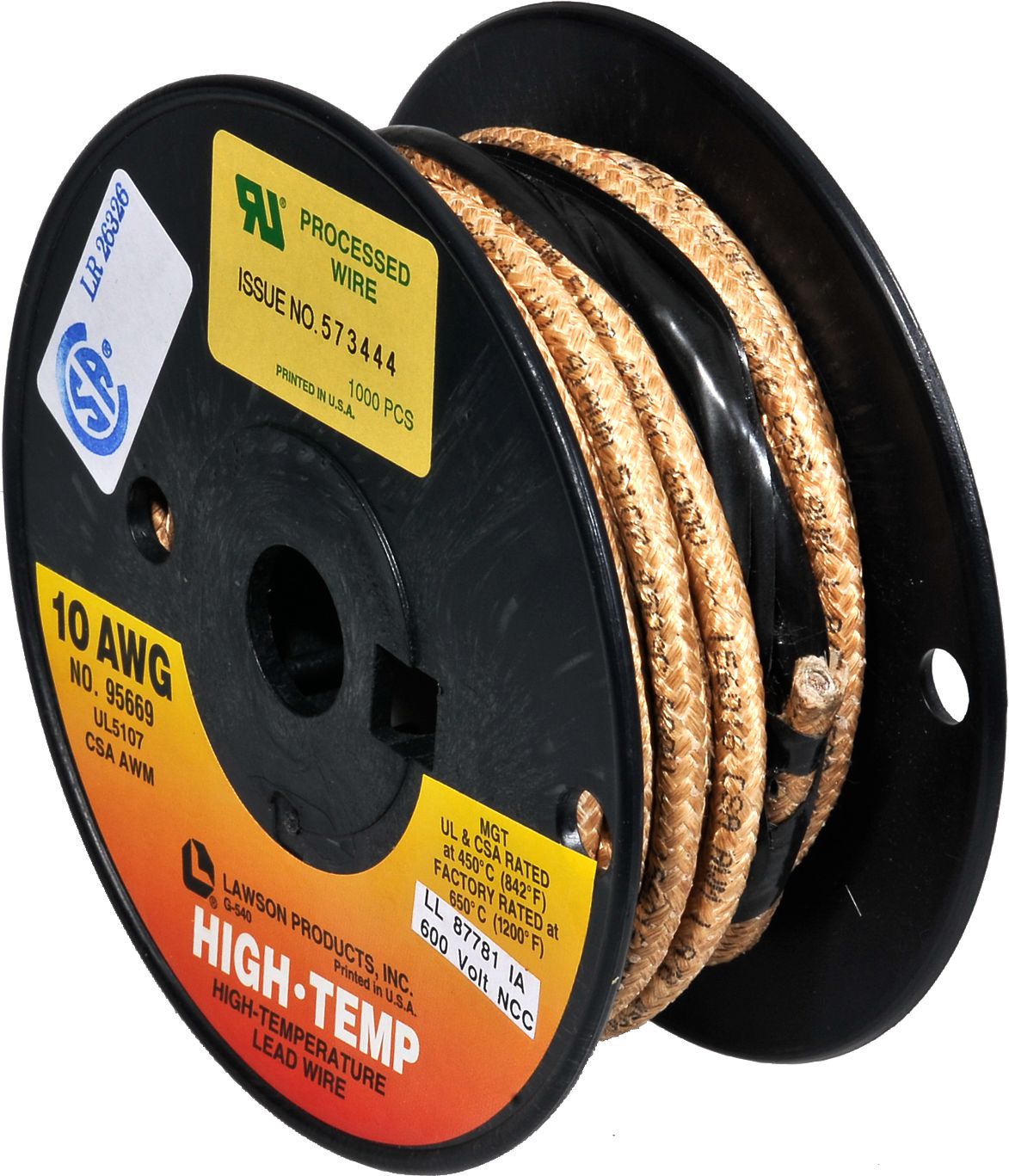

Hi-Temp Lead Wire 10 AWG 25'
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Product Description
• 25 feet per roll• Carries the highest UL/CSA lead wire rating, 842°F (450°C), and is factory-rated at 1,200°F (650°C)• 600V• UL 5107• CSA AWM
• Designed for industrial heating products such as commercial food service equipment, heaters, kilns, heat-treating equipment and heater elements
Technical Specifications
| Item#: | 95667 |
|---|---|
| Wire Gauge | 14 AWG |
| Volts | 600 |
| Temperature Rating | 842/1200 Max F |
| Length | 25 ft |
| Package Type | Roll |
| Approvals | UL 5107 and CSA AWM |
| Style | MGT High-Temperature Lead Wire |
| Type | Wire |
| UNSPSC #: | 26121543 |
| TAA Compliant: | Yes |
| Weight: | 0.64 lb |
