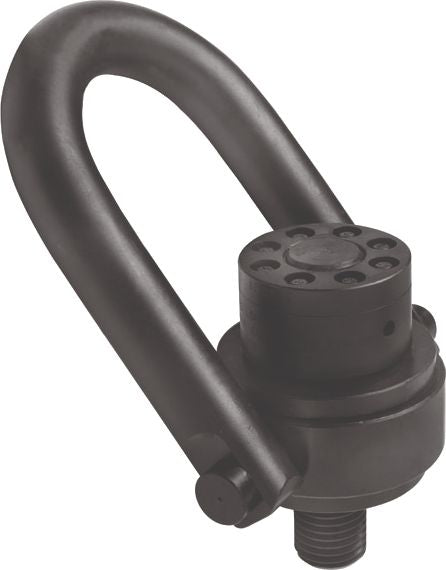

Hoist Ring, EZ-Torque®, 24,000 lb Load Limit, 1-1/2-6 Thread Size, 2.70" Thread Length
(Pack of
1)
SKU:1423358 Item#: 1423358
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Item#: 64348
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: FA88447
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Item#: DY89310247
Couldn't load pickup availability
Product Description
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423358 |
|---|---|
| Manufacturer Model #: | 23494 |
| Type | EZ-Torque® |
| Thread Size | 1-1/2-6 |
| Working Load Limit | 24,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 18 ft·lbf |

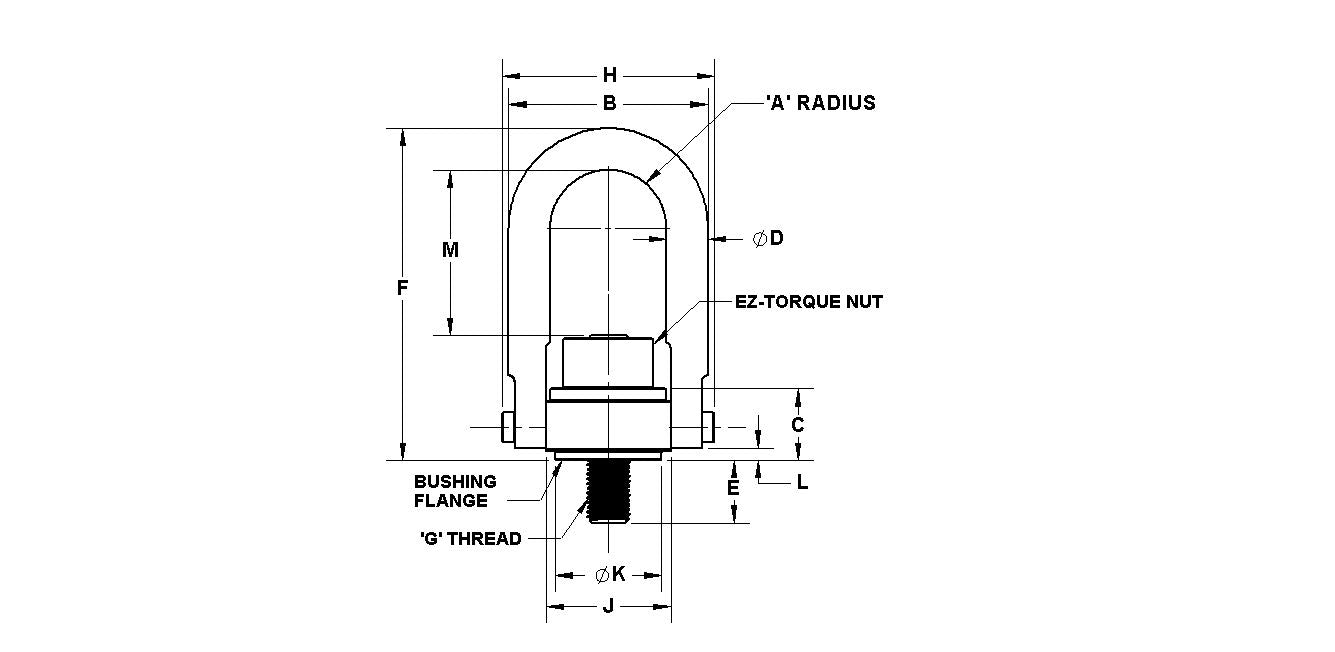

| Dimension A | 2.25 " |
| Dimension B | 8.0 " |
| Dimension C | 2.81 " |
| Dimension D | 1-3/4 " |
| Dimension E | 2.70 " |
| Dimension F | 12.47 " |
| Dimension G | 1-1/2-6 " |
| Dimension H | 8.55 " |
| Dimension J | 4.87 " |
| Dimension K | 4.20 " |
| Dimension L | 0.47 " |
| Dimension M | 6.12 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
