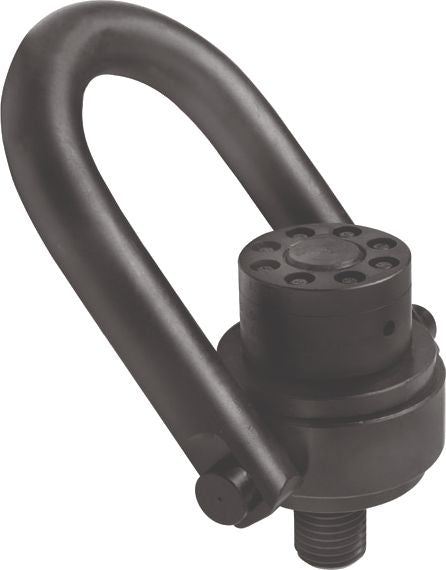

Hoist Ring, EZ-Torque®, Metric, 11,000 kg Load Limit, M36x4.0 Thread Size, 69mm Thread Length
(Pack of
1)
SKU:1423364 Item#: 1423364
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Product Description
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423364 |
|---|---|
| Manufacturer Model #: | 24494 |
| Type | EZ-Torque® |
| Thread Size | M36x4.0 |
| Working Load Limit | 11,000 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 20.8 N·m |
| Dimension A | 57.2 mm |
| Dimension B | 203.2 mm |
| Dimension C | 71.4 mm |
| Dimension D | 44.5 mm |
| Dimension E | 69 mm |
| Dimension F | 316.7 mm |
| Dimension G | M36x4.0 mm |
| Dimension H | 217.2 mm |
| Dimension J | 123.7 mm |
| Dimension K | 106.7 mm |
| Dimension L | 11.9 mm |
| Dimension M | 164.8 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
