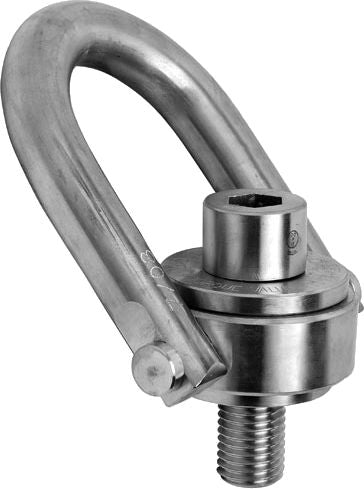

Hoist Ring, Safety Engineered, Metric, Stainless Steel, 525 kg Load Limit, M12x1.75 Thread Size, 19mm Thread Length
(Pack of
1)
SKU:1423344 Item#: 1423344
• Material: 300 Series stainless steel
• Design Factor: 5:1
• Range of Movement: Swivel 360°, Pivot 180° under load
• NDT: Liquid penetrant tested per ASTM-E 1417
• Purification Process: Clean and passivate per ASTM-A967
• Typical Applications: Use stainless for corrosive, cryogenic or elevated temperature environments
• All dimensions approximate – variations do not affect use or design factor
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Product Description
• Material: 300 Series stainless steel• Design Factor: 5:1
• Range of Movement: Swivel 360°, Pivot 180° under load
• NDT: Liquid penetrant tested per ASTM-E 1417
• Purification Process: Clean and passivate per ASTM-A967
• Typical Applications: Use stainless for corrosive, cryogenic or elevated temperature environments
• All dimensions approximate – variations do not affect use or design factor
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423344 |
|---|---|
| Type | Safety Engineered |
| Thread Size | M12x1.75 |
| Thread Length | 19 mm |
| Material | 300 Series Stainless Steel |
| Working Load Limit | 525 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 18.5 N·m |

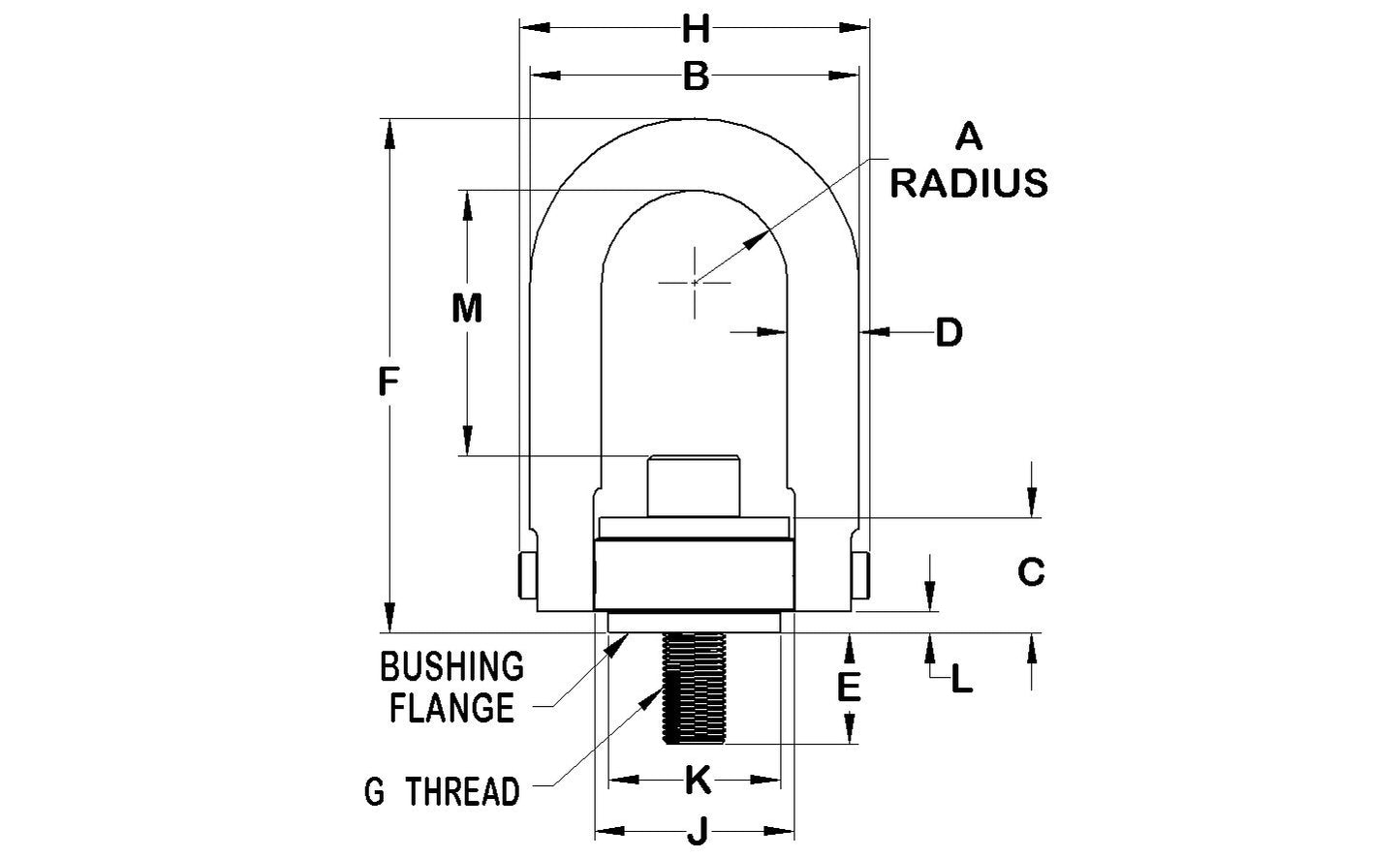

| Dimension A | 22.4 mm |
| Dimension B | 82.5 mm |
| Dimension C | 31.0 mm |
| Dimension D | 19.0 mm |
| Dimension E | 19 mm |
| Dimension F | 170.6 mm |
| Dimension G | M12x1.75 mm |
| Dimension H | 89.4 mm |
| Dimension J | 50.5 mm |
| Dimension K | 38.0 mm |
| Dimension L | 4.1 mm |
| Dimension M | 108.6 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
