Hoist Ring, Side Pull, Metric, 2,500 kg Load Limit, M20x2.5 Thread Size, 40.0mm Thread Length
(Pack of
1)
SKU:1423400 Item#: 1423400

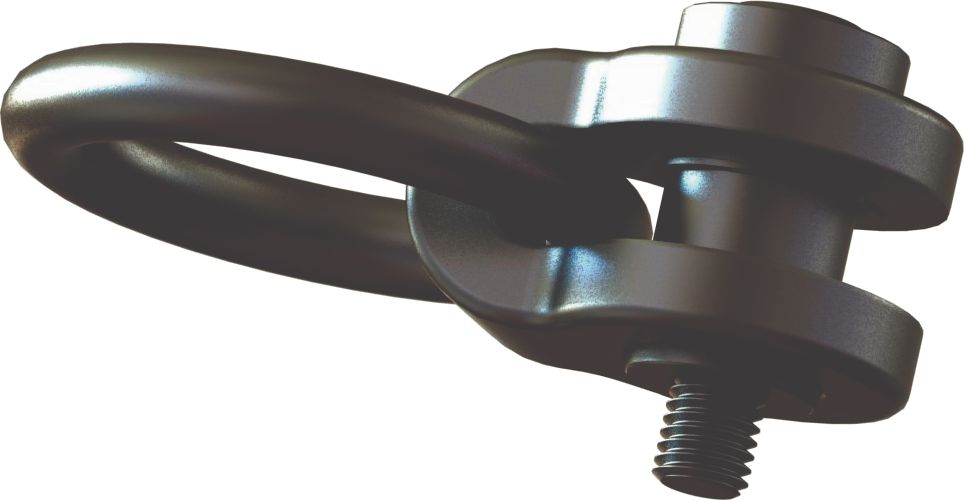

The Sise Pull Hoist Ring is designed for side lifting. Full swivel and pivot action allows you to flip and turn parts without unhooking. The large weldless ring can accomodate larger hooks.
• Alloy Steel (Certified Heat Treat)
• 5:1 Design Factor
• Swivel 360° Under Load
• Magnaflux inspected
• Black Oxide Finish
• Meets Military Specification No. MIL-STD-209C or MIL-STD-1365(11)
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Product Description
The Sise Pull Hoist Ring is designed for side lifting. Full swivel and pivot action allows you to flip and turn parts without unhooking. The large weldless ring can accomodate larger hooks.• Alloy Steel (Certified Heat Treat)
• 5:1 Design Factor
• Swivel 360° Under Load
• Magnaflux inspected
• Black Oxide Finish
• Meets Military Specification No. MIL-STD-209C or MIL-STD-1365(11)
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423400 |
|---|---|
| Type | Side Pull |
| Thread Size | M20x2.5 |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 2,500 kg |
| Swivel | 360 ° |
| Pivot | 0 ° |
| Recommended Installation Torque | 125 N·m |

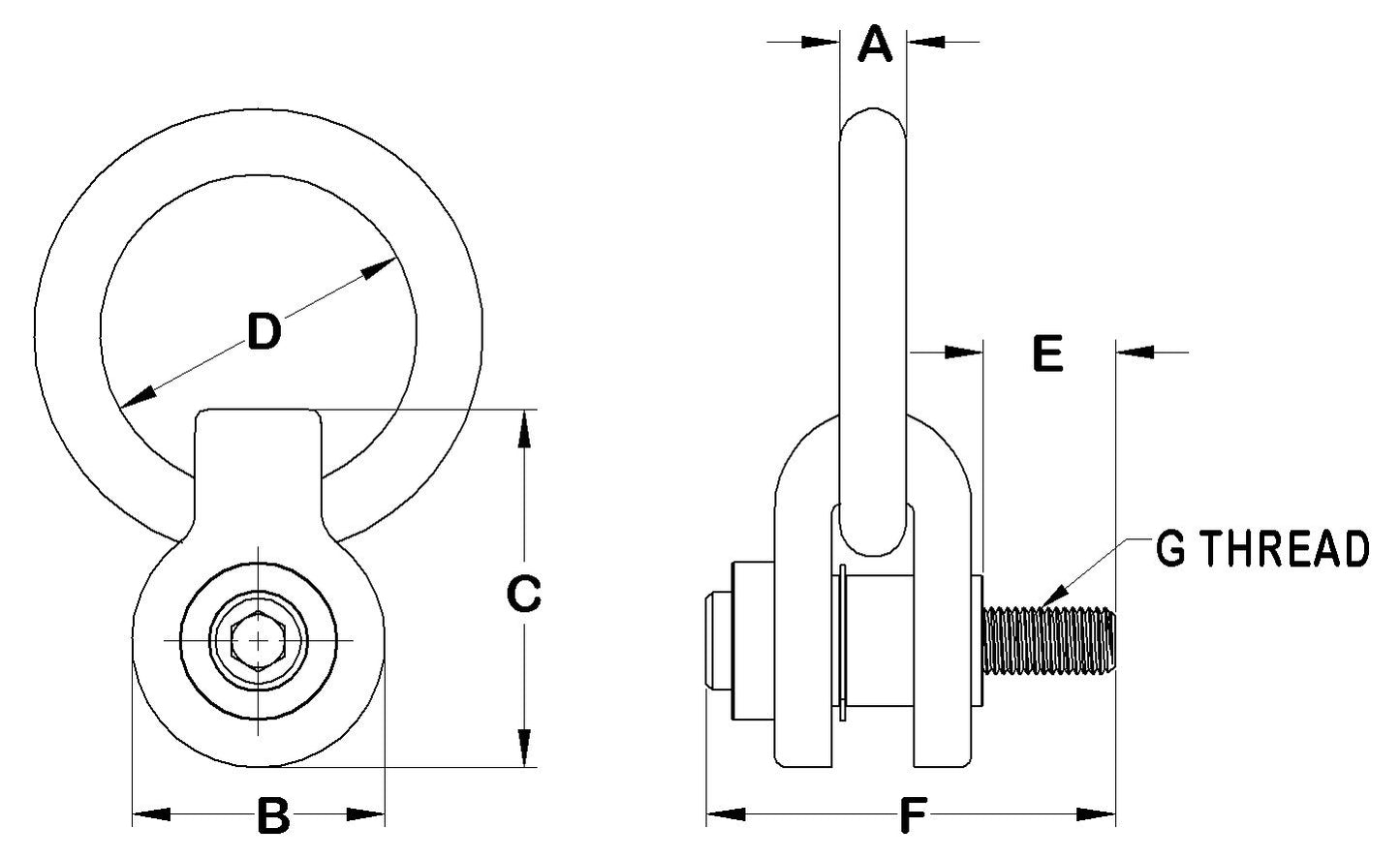

| Dimension A | 25.4 mm |
| Dimension B | 95.3 mm |
| Dimension C | 127.0 mm |
| Dimension D | 101.6 mm |
| Dimension E | 40.0 mm |
| Dimension F | 128.9 mm |
| Dimension G | M20x2.5 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
