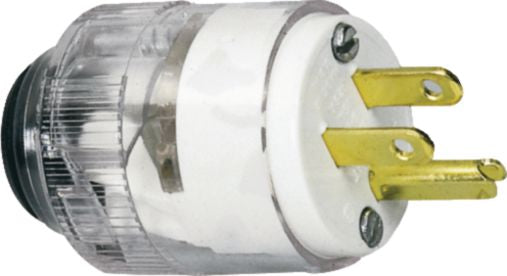

Hospital Grade Straight Plug 20A 125V
(Pack of
1.0)
• Green dot signifies Hospital Grade
• 2 pole, 3 wire
• Assembly and cord-grip screws install from front to avoid accidental energizing of hand-held portion of plug
• Non-metallic cord grip firmly grips power cord assuring maximum strain relief – accepts three-conductor cords 0.300" – 0.655" dia.
• Clamp-type terminals for quick, solid connections; terminal screws are color-coded for easy identification
• Individual wire pockets allow maximum conductor separation to prevent flash-over between wires
• Strip gauge for accurate wiring
• No exposed metal parts on hand-held side
• Rugged all-nylon construction
• Transparent wiring chamber and cover for visual inspection
• Dead-front construction prevents accidental contact with live parts
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations
• Meets or exceeds UL, CSA, NEMA/ANSI and Federal standards
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-87
Frequently Bought Together
Nylon Cable Tie 6" Black
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
Industrial Duty Plug 2 Pole 3 Wire 20A 125V
Couldn't load pickup availability
Locking Receptacle 20A 125V
Couldn't load pickup availability
Hospital Grade Angle Plug 15A 125V
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Sealed Toggle Switch DPDT 18A 125V On-Off-On
Couldn't load pickup availability
Push Button Switch SPST 12VDC Momentary On
Couldn't load pickup availability
Rocker Switch SPST 20A 12V On-Amber/Off-Clear
Couldn't load pickup availability
Product Description
• Green dot signifies Hospital Grade• 2 pole, 3 wire
• Assembly and cord-grip screws install from front to avoid accidental energizing of hand-held portion of plug
• Non-metallic cord grip firmly grips power cord assuring maximum strain relief – accepts three-conductor cords 0.300" – 0.655" dia.
• Clamp-type terminals for quick, solid connections; terminal screws are color-coded for easy identification
• Individual wire pockets allow maximum conductor separation to prevent flash-over between wires
• Strip gauge for accurate wiring
• No exposed metal parts on hand-held side
• Rugged all-nylon construction
• Transparent wiring chamber and cover for visual inspection
• Dead-front construction prevents accidental contact with live parts
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations
• Meets or exceeds UL, CSA, NEMA/ANSI and Federal standards
Technical Specifications
| Item#: | 83333 |
|---|---|
| Style | Hospital Grade Plugs and Connectors |
| Volts | 125 |
| Description | Straight Plug |
| NEMA Configuration | 5-20P |
| Cord Diameter | 0.300 - 0.655 " |
| Approvals | UL, CSA, NEMA, ANSI and Federal standards |
| Type | Bushings, Plugs, and Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.14 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
