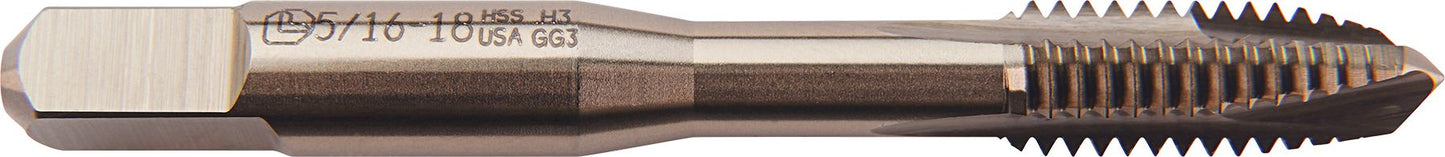

Spiral Point Hand Tap, High Speed Steel, 3 Flute, 5/16-18, 11/16" Thread Length
(Pack of
1)
SKU:61131 Item#: 61131
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-43
Frequently Bought Together
Jobber Length Drill Bit HSS 19/64"
Couldn't load pickup availability
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/16"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Pilotdrive Cryotap M5 x 0.8 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M14 x 1.5 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M6 x 1.0 Starter Hand Tap
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap 3/8-16
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-11
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 7/16-14
Couldn't load pickup availability
Scotch-Brite Roloc Surface Conditioning Disc 2"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61131 |
|---|---|
| Type | Fractional |
| Diameter | 5/16 " |
| Pitch | 18 |
| Flutes | 3 |
| Thread Length | 11/16 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | F |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
