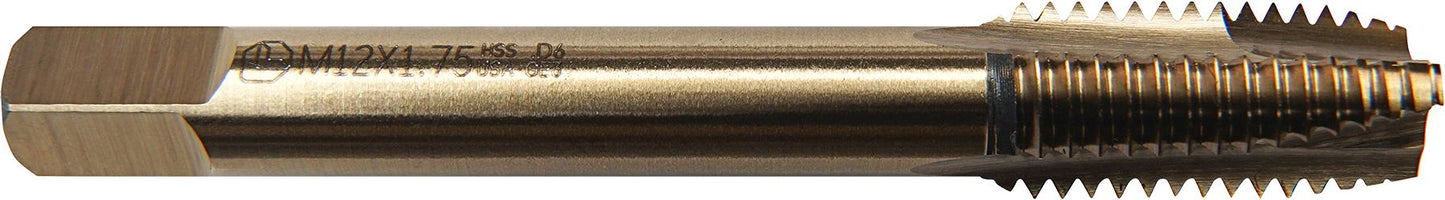

Spiral Point Hand Tap, High Speed Steel, 3 Flute, M12 x 1.75, 3-3/8" Overall Length
(Pack of
1)
SKU:63501 Item#: 63501
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-43
Frequently Bought Together
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Abrasive Hand Pad All Purpose 6 x 9"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
HSS Spiral Point Hand Tap M14 x 2
Couldn't load pickup availability
HSS Spiral Point Hand Tap 9/16-12
Couldn't load pickup availability
HSS Spiral Point Hand Tap 12-24
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M6 x 1
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 5/16-18
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap 8-32
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63501 |
|---|---|
| Type | Metric |
| Diameter | M12 |
| Pitch | 1.75 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 3-3/8 " |
| Recommended Drill Size | Yes |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
