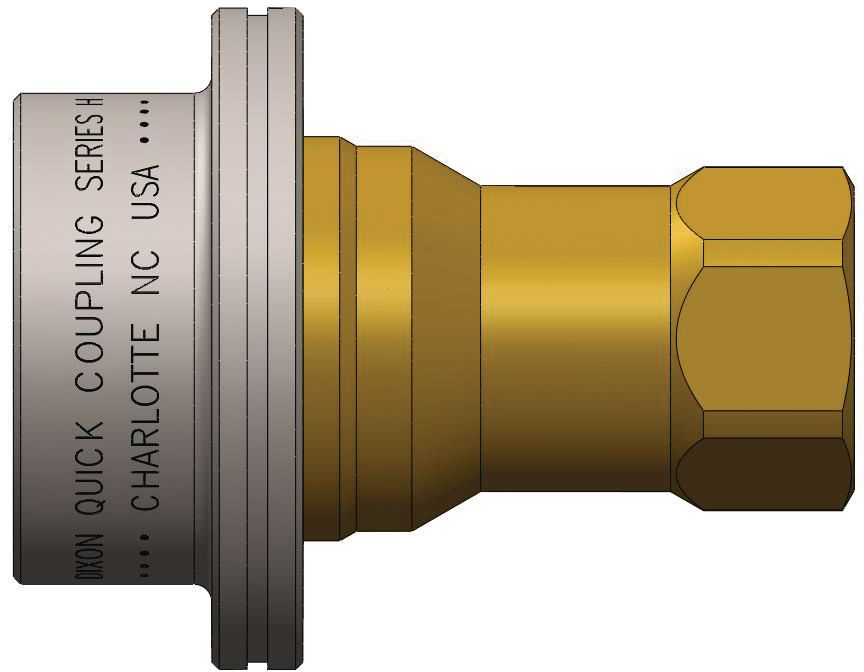

Hydraulic Quick Connect Coupler 1/4" x 1/4-18
(Pack of
1.0)
• Flanged sleeves are designed for ease of operation while wearing gloves
• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1" x 1-11-1/2
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• Flanged sleeves are designed for ease of operation while wearing gloves• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Technical Specifications
| Item#: | 21001 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,500 PSI |
| Seal Material | EPDM |
| Material | Brass |
| Locking Mechanism | 8 Balls |
| Flow | 88 lb/h |
| Length | 2.26 " |
| Temperature Range | -70 to 400 F |
| Working Pressure | 200 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1.42 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
