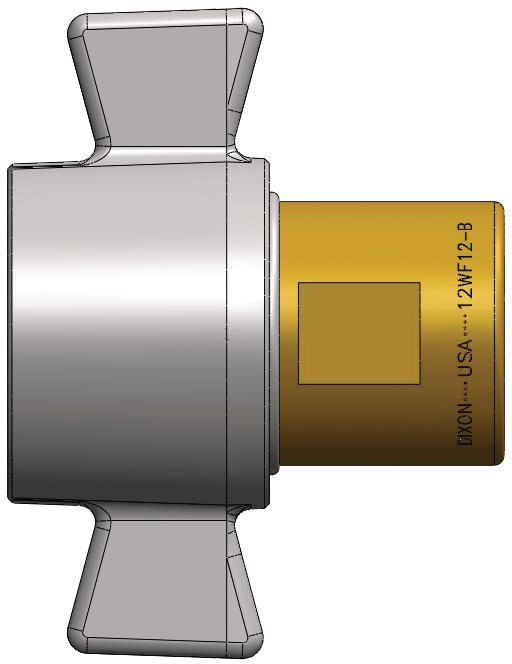

Hydraulic Quick Connect Coupler, Brass, Wing Style, 1" x 1-11-1/2, Female NPTF, 3.78" Length, 3000PSI
(Pack of
1)
SKU:20969 Item#: 20969
• Provides no-spill connections between trucks/tractors and trailers
• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-87
Frequently Bought Together
Crimp-On Hose Coupling 3/8" x 3/4-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/4-18
Couldn't load pickup availability
Coupler, ISO16028, 1/2" Body, 1-1/16"- 12 Female ORB, Steel
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 3/8-18
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
• Provides no-spill connections between trucks/tractors and trailers• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Technical Specifications
| Item#: | 20969 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Wing Style |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,100 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Brass |
| Locking Mechanism | Threaded |
| Flow | 40 gal/min |
| Length | 3.78 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,000 PSI |
| Hex Size | 1.89 " |
| Maximum Diameter | 4.45 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 2.04 lb |
