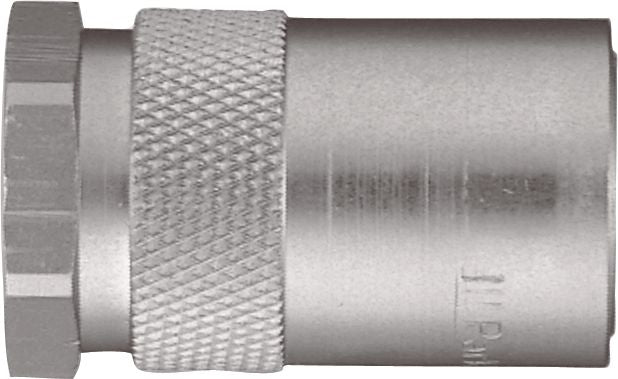

Hydraulic Quick Connect Coupler, Brass, Unvalved, 3/8" x 1/4-18, Female NPTF, 1.84" Length, 500PSI
(Pack of
2)
SKU:55829 Item#: 55829
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.
• Couplers are non-valved and provide maximum flow for efficient cooling
• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-Series
Parker: Mold Mate
Foster: FJT
Hansen: Flo-Temp
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-86
Frequently Bought Together
Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Crimp-On Hose Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/4" x 3/4-14
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Product Description
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.• Couplers are non-valved and provide maximum flow for efficient cooling
• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-Series
Parker: Mold Mate
Foster: FJT
Hansen: Flo-Temp
Technical Specifications
| Item#: | 55829 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Unvalved |
| Body Size | 3/8 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,200 PSI |
| Seal Material | Silicone |
| Material | Brass |
| Locking Mechanism | 8 Balls |
| Flow | 9 gal/min |
| Length | 1.84 " |
| Temperature Range | -90 to 400 F |
| Working Pressure | 500 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 0.95 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.54 lb |
