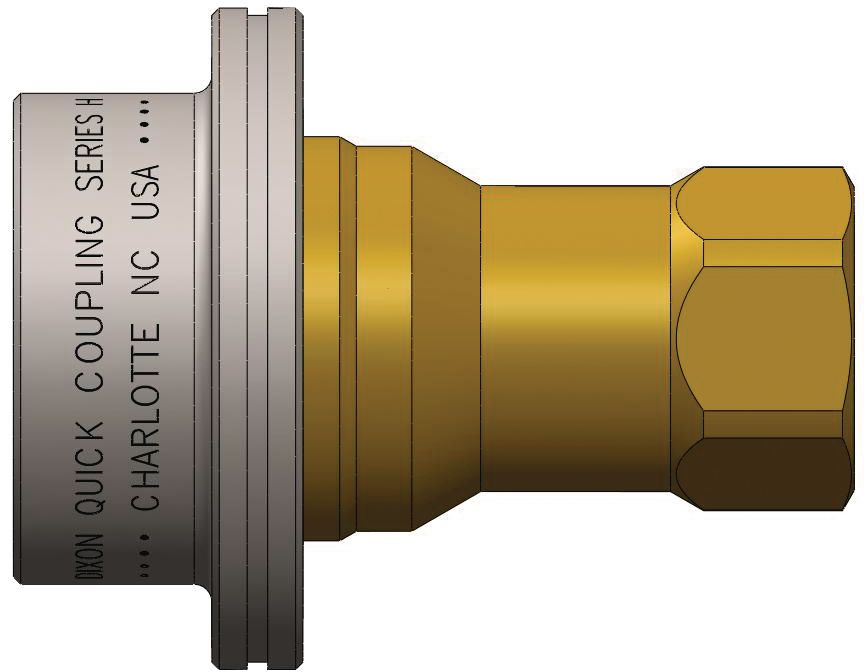

Hydraulic Quick Connect Coupler 3/8" x 3/8-18
(Pack of
1)
• Flanged sleeves are designed for ease of operation while wearing gloves
• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
1/2" ISO-A COUPL, 3/4"-16 ORB, STEE
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 3/4" ORBF X 1/2" Plug
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Product Description
• Flanged sleeves are designed for ease of operation while wearing gloves• EPDM steam seals formulated to withstand continuous steam service
• Brass couplers have a redundant O-ring to maximize service life and provide additional sealing capacity
• Warning: Do not disconnect steam couplings while under pressure!
• Fully compliant with ISO 7241 Series B
• Temperature range: –70°F to + 400°F (–40°C to +204°C)
Dixon: Series HSParker: 60 SeriesHansen: HK-Series
Technical Specifications
| Item#: | 21002 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 12,000 PSI |
| Seal Material | EPDM |
| Material | Brass |
| Locking Mechanism | 9 Balls |
| Flow | 206 lb/h |
| Length | 2.51 " |
| Temperature Range | -70 to 400 F |
| Working Pressure | 200 PSI |
| Hex Size | 7/8 " |
| Maximum Diameter | 1.73 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.56 lb |
