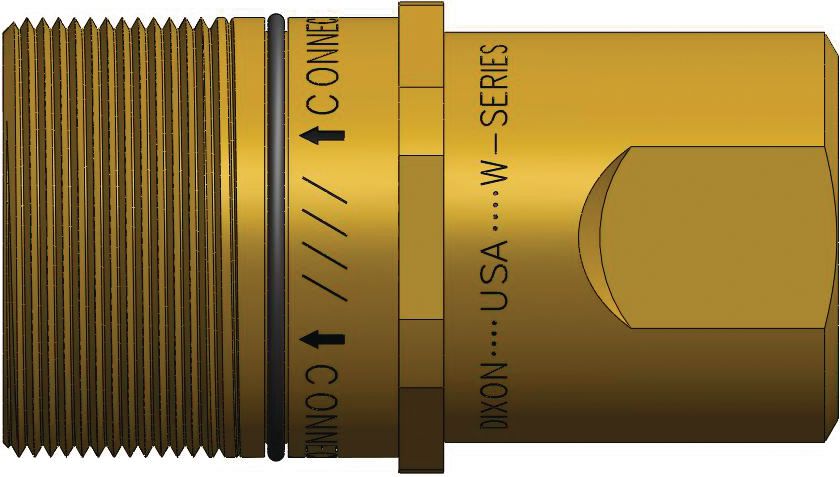

Hydraulic Quick Connect Nipple, Brass, Wing Style, 1" x 1-11-1/2, Female NPTF, 3.55" Length, 3000PSI
(Pack of
1)
SKU:20978 Item#: 20978
• Provides no-spill connections between trucks/tractors and trailers
• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-87
Frequently Bought Together
Straight Thread O-Ring Buna-N 0.924 x 0.116"
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.351 x 0.072"
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Hose Clamp 304 SS 1-9/16 to 2-1/2"
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/8" x 3/8-18
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 3/4" ORBF X 1/2" Body
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• Provides no-spill connections between trucks/tractors and trailers• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series W
Parker: 6100 Series
Aeroquip: 5100 Series
Snap-Tite: Series 78
Faster: Series FB
Technical Specifications
| Item#: | 20978 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,100 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Brass |
| Locking Mechanism | Threaded |
| Flow | 40 gal/min |
| Length | 3.55 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,000 PSI |
| Hex Size | 1-9/16 " |
| Maximum Diameter | 2 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 1.45 lb |
