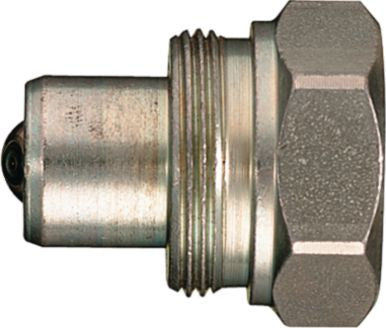

Hydraulic Quick Connect Nipple, Steel, Screw Together, 1/4" x 1/4-18, Female NPTF, 2.36" Length, 10000PSI
(Pack of
1)
SKU:28885 Item#: 28885
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.
• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Couldn't load pickup availability
Catalog page#: 8-84
Frequently Bought Together
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1" x 1-11-1/2
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
Screw connection eliminates brinelling and wear, making the product suitable for high-pressure and pressure-pulse applications, including hydraulic tools, cylinders and pumps. You can even connect and disconnect even with low residual hydraulic line pressure.• Zinc-plated carbon steel with nitrile seals and PTFE backing ring• Female NPT thread on the nipple, male NPT thread on the coupler
• Temperature range: –4°F to +212°F (–20°C to +100°C)
Dixon: T-Series
Technical Specifications
| Item#: | 28885 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Screw Together |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 35,714 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 3.8 gal/min |
| Length | 1.30 " |
| Temperature Range | -4 to 212 F |
| Working Pressure | 10,000 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1.12 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
