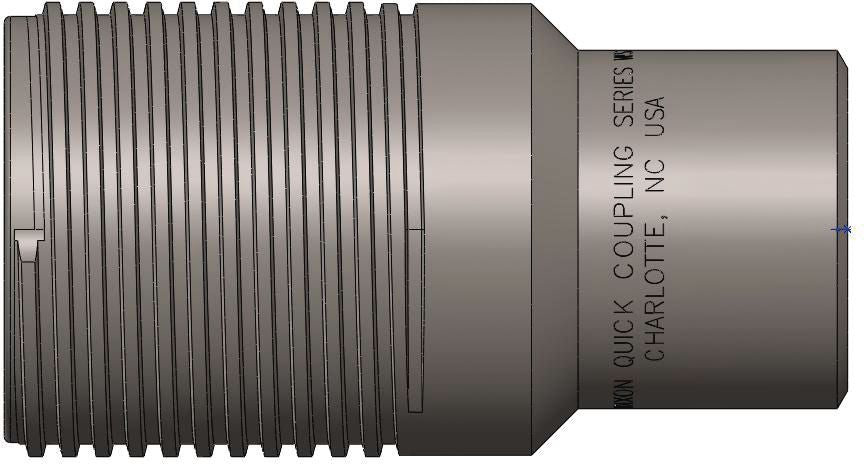

Hydraulic Quick Connect Nipple Steel 2" x 2-11-1/2
(Pack of
1.0)
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS SeriesSnap-tite: 75 Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-88
Frequently Bought Together
Straight Thread O-Ring Buna-N 0.414 x 0.072"
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1"
Couldn't load pickup availability
Z Series Crimp-On Elbow 90° 3/8" x 11/16-16
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 3/8-18
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environmentsDixon: WS SeriesSnap-tite: 75 Series
Technical Specifications
| Item#: | 20995 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 2 " |
| Thread Size | 2-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 15,000 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 270 gal/min |
| Length | 7.05 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 4.00 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 12.7 lb |
